Leica flexline TS02 power 7 second total station

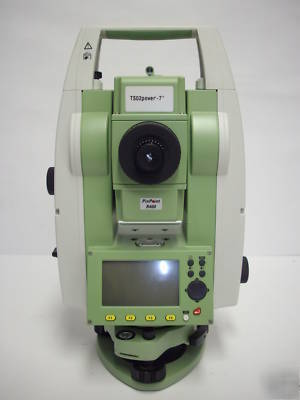

Leica Flexline TS02 7 Reflectorless Total Station
Price Drop Until March 1st was 5750!
In as new cosmetic condition and in perfect working order, this is your chance to obtain a state of the art Survey and Construction instrument at a great price.
Included in the sale are: Flexline TS02 7 R400 Total Station, 2 batteries and charging kit, Mini Prism and 2 Poles Set, USB Data Cable, Sun Shade, Rain Cover, Heavy Duty Red Carry Case, 12 Month Calibration Certificate from a Leica and Pentax Approved Service Centre.
To ensure that you stay one-step-ahead, Leica Geosystems has developed a new generation of Total Stations using latest technology, the Leica FlexLine. For the first time, hardware and software options can be simply selected so that the FlexLine Total Station exactly meets your requirements. The FlexLine family of Total Stations is manufactured with over 200 years of experience to deliver leading quality and reliability.
With a FlexLine Total Station you can be sure of complete flexibility for Today and Tomorrow. Leica FlexLine is ready to grow with your success.
Accuracy (Standard deviation ISO-17123-3) 7 (2 mgon)
Method Absolute, continuous, diametrical
Display resolution 0.1 / 0.1 mgon / 0.01 mil
Compensation Quadruple axis compensation (Setting On, Off)
Compensator Setting accuracy 2
Distance Measurement with Reflector
Range Round prism GPR1 3 500 m
Range Reflective tape (60 mm x 60 mm) 250 m
Accuracy / Measurement time Standard: 1.5 mm+2 ppm / typ. 2.4 s,
Fast: 3 mm+2 ppm / typ. 0.8 s,
Tracking: 3 mm+2 ppm / typ. <0.15 s
(Standard deviation ISO-17123-4)
Distance Measurement without Reflector
2 mm+2 ppm2 / typ. 3 s (Standard deviation ISO-17123-4)
Laser dot size At 30 m: approx. 7 mm x 10 mm,
Extended Internal memory Max.: 24 000 fixpoints, Max.: 13 500 measurements
Interfaces Serial (Baudrate 1 200 to 115 200)
Data formats GSI / DXF / LandXML / user definable ASCII formats
Field of view 1 30 (1.66 gon) / 2.7 m at 100 m
Focusing range 1.7 m to infinity
Reticle Illuminated, 5 brightness levels
Display Graphics, 160 x 280 pixels, illuminated, 5 brightness levels
Keyboard Alpha-numerical keyboard
Type Laser point, 5 brightness levels
Centering accuracy 1.5 mm at 1.5 m Instrument height
Operating time approx. 20 hours1
Total Station including GEB211 and tribrach 5.1 kg
Temperature range (operation) -20 C to +50 C (-4 F to +122 F)
Dust & splash proof (IEC 60529) IP55
Application programs Topography (Orientation & Surveying), Stake Out, Resection, Height Transfer, Construction,
Area (Plan & Surface), Volume calculation, Tie Distance (MLM), Remote Height, Hidden Point,
1 Single Measurement every 30 second at 25 C with GEB221. Battery time may be shorter if battery is not new.
