Desktop automatic reflow oven smd-2007, lead-free model

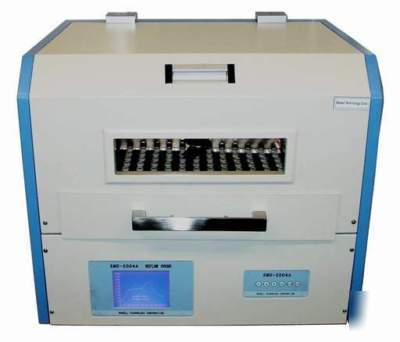

Desktop Automatic Reflow Oven SMD-2007
Please kindly refer to the details as following:
* Full automatic fuzzy logic temperature control.
* Can be used for any surface mount components.
* Can also be used for two sides PCB boards.
* RS232 computer interface and software.
* Lead-free reflow capable.
* The new model has front view window, the top can be opened for easy heater replacement.
* Great for repair preheating.
* Working area: 400mmx350mmX30mm(14"x16"x1").
* External measurement: 600mm(w) x465mm (d) x500mm (h).
* Working cycle 5 minutes per board. Beeps when the board is done.
* Built in automatic air cool.
* One profile stored in EPROM, can be modified with keypads.
* No programming necessary, no computer interface.
* 3.5KW power, 220V. We have transformers for 110V power supply. It works with 208V supply, but not with 240V or higher.
