ametek gemco rotary limit switch 2000-1122B, 2000:1

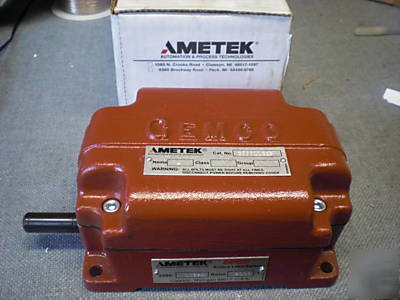

Ametek Gemco Rotary Limit Switch
Series 2000 Worm Gear Type with Bronze Gears & Steel Cams
2000 to 1 Ratio Gear Ratio, the cam block rotates once every 2000 turns of the main shaft
4 Independently Adjustable Switches/ Circuits / Cams
Single Pole Double Throw U.L. Listed Precision Snap Action Switches which can be wired for normally open or closed circuits. 4 Screw Terminals
Standard Cams allow switch contacts to be opened for 25 or 335 Degrees. Other cam dwells are available
NEMA 4 Rated, Cast Aluminum, Red Finish Enclosure, Watertight
Up to 1000 RPM Clock Wise or CCW
1/2 Inch Diameter Input Shaft Extends 1 & 1/2 Inch from the Enclosure, Includes a Woodruff Keyway & # 404 Key
Maximum Operating Temperature 180 Degrees F
1/2 -14 American Standard Pipe Thread Entrance
