Leica dmlm/p trinocular polarizing microscope +optics

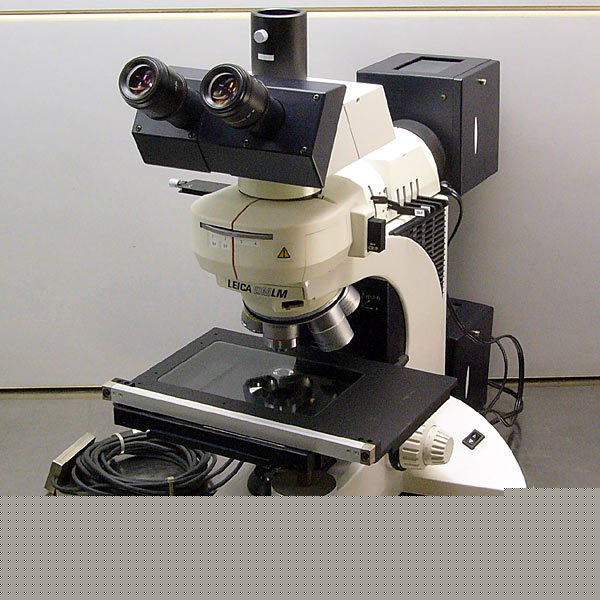

Leica DMLM/P Trinocular Polarizing Microscope +Optics
The Leica DM LM is a modern system microscope with a modular design that makes it suitable for a wide range of applications from simple routine examinations in material science to material research tasks. It has many features which make the user's daily workload decisively lighter and more conveninent. The key performance features of the Leica DM LM are its modularity, universal application potential, stability, ergonomy, and excellent optics.
Modules Included With This Lot:
* Leica Polarizing Microscope Type 020-510.718DMLM/P BZ:00 561073 200433
* 12V 100W light output to top or bottom illuminator
* 3-gear Focus, coarse and fine focus as well as torque adjustments on both sides
* Pupillary distance 55-74
* 1x Magnification head spacer 505062
* 2pcs. Leica 507800 HC PLAN 10x/25 M eyepieces (suitable for use with/without eyeglasses)
* Quintuple objective nosepiece for bright-/darkfield
* 5x/0.12 /-/A N PLAN BD Leica 566016
* 10x/0.25 /-/A N PLAN BD Leica 566005
* 20x/0.40 /0 N PLAN BD Leica 566029
* 50x/0.75 /0/D N PLAN BD Leica 566030
* 100x/0.90 /0 N PLAN BD Leica 566031
* Transmitted Light Illuminator with 3 filter positions, one DLF filter included
* Incident Light Illuminator 565015
* 4 filter locations, with included DLF and N4 filters
* 4 prism locations, with 561034 Bright Field and 561035 Dark Field included
* Filter slider: 555051 ICR/P
* Filter slider IC/P 555049
* 2x 12V 100W Halogen lamphouses 504016
* Stage: Semprex 12-6400.21 "1 mic" 10-3/8" x 7"
* Removable glass stage plate 6.5" x 4.25"
* We can read one encoder head, it says "RSF Elektronik Type MAS001-6 Interval 20um"
* Stage Z (focus) travel (including adjustable stop) >50mm, limited by the objectives
* Condenser 0.90/1.25 OIL S1
* Stage mounting adapter 561039
