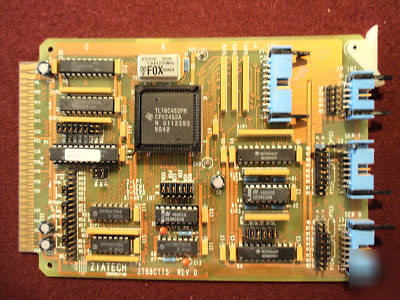

Ziatech zt 88CT75 centronics and serial interface
THIS CARD WAS REMOVED FROM A WORKING SYSTEM.
Exact STD form factor: no porches or connector extensions
Two fully programmable serial I/O channels, configurable for RS-232 or RS-485 operation
Programmable baud rate generator and modem control signals for each serial channel
Loopback controls for fault isolation on each serial channel
Complete status reporting capabilities
Generation and stripping of serial data control bits (start, stop,parity)
Line break generation and detection for each serial channel
Fully prioritized independent interrupt controls
Each serial channel is independently configurable as a DTE or DCE device
Serial and parallel printer ports are PC/AT compatible
Linear addressing mode available to minimize system I/O port requirements
Programmable two-stage watchdog timer
CMOS implementation for high speed and low power requirements
