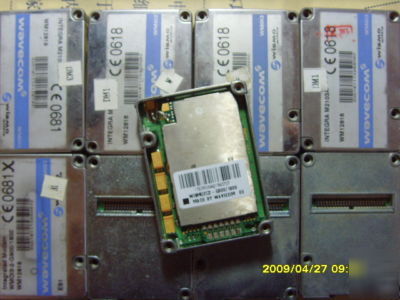

Wavecom wavecom WMOI3 gsm 1800MHZ 900MHZ module
full type approved integrated modem constitutes a self-contained, fully integrated
implementation of the GSM standard.
Thanks to standard interfaces, it can be integrated into any system which offers
unlimited assets. It is ready for voice, SMS, data and fax. WMOi3 integrated
modem is a product with a sole connector, which puts together all the interface
signals in order to facilitate its integration.
It has an integrated SIM connector as well as a standard RF connector type MMCX
For system integrators, WMOi3 is the fast track to the wireless world.
Dual Band GSM modem E-GSM 900/1800 or E-GSM 900/1900
Class 1 (1W at 1800/1900 MHz)
Small size and low power consumption
fax and data transmission without extra hardware
Easy remote control by AT commands for dedicated applications
Fully Type Approved according to GSM Phase 2+ specifications
Fully shielded and ready-to-use
Power supply: 5 VDC +/- 5% 1A
300 mA average in GSM 900 at Tx power max 2W
Absolute maximum dimension: 46 x 64 x 12 mm
Casing: Complete shielding-stainless steel-
Operating temperature range: -20 C to + 55 C
Storage temperature: -35 C to +85 C
1.2.4.2 1.2.4.2 Short Message Service Short Message Service
1.2.4.3 1.2.4.3 Data Features Data Features
Data circuit asynchronous, transparent and non transparent up to 14,400
Automatic fax group 3 (Class 1 & 2)
1.2.4.4 1.2.4.4 GSM Supplementary services GSM Supplementary services
1.2.4.5 1.2.4.5 Other features Other features
