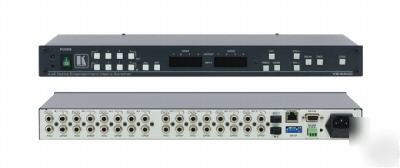

Kramer electronics vs-44HC 4X4 component digital matrix
Manufacturer: Kramer Electronics Model/Part #: VS-44HC
The VS-42HC & VS-44HC are high performance matrix switchers for component video (YUV and Y, Pb/Cb, Pr/Cr) and S/PDIF audio signals. Designed primarily for Home Entertainment applications, they can route any or all inputs to any or all outputs simultaneously.
High Bandwidth - 200MHz (-3dB).
Toslink Audio Capability - Audio input 2 can accept either S/PDIF or Toslink audio (selected via dip switches). If selected, both S/PDIF and Toslink Audio will be simultaneously available on Audio output 2.
Sampling Rates - Up to 192kHz.
Programmable Audio Delay - Up to 999ms (depending on sample rate).
Audio Breakaway Switching - VS-44HC only.
Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed as needed. VS-44HC only.
Take Button - Execute multiple switches all at once. VS-44HC only.
Flexible Control Options - Front panel, RS-485, RS-232 (K-Router Windows -based software is included), Ethernet, IR remote (included).
Worldwide Power Supply - 90-240V AC.
