K.O. Lee B6060B DAKOTA SERIES TOOL & CUTTER GRINDER, BA

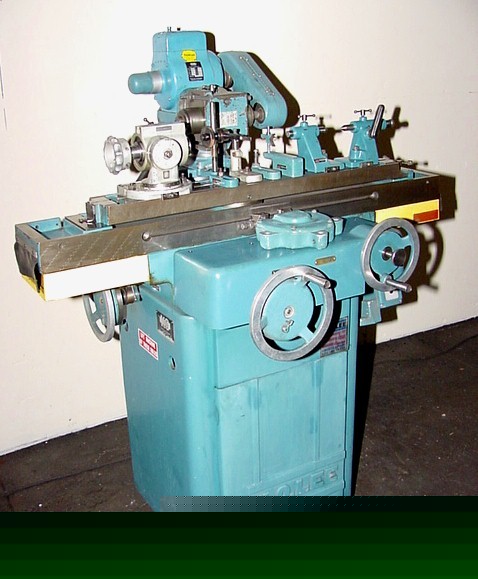

K.O. Lee B6060B DAKOTA SERIES TOOL & CUTTER GRINDER, BALL BEARING TABLE, 6055 TILTING WHEELHEAD
K.O. LEE "DAKOTA" SERIES (WHEELHEAD TILTS & SWIVELS)
UNIVERSAL TOOL & CUTTER GRINDER WITH BALL BEARING TABLE FEED
MODEL: B6060B S/N: 26384YL NEW: 1992
SWING OVER TABLE ........................... 12-1/4"
DISTANCE BETWEEN TAILSTOCKS ..................... 32"
TABLE WORKING SURFACE .............. 5-1/4" X 37-1/4"
SUB TABLE .................................. 8" X 48"
LONGITUDINAL TABLE TRAVERSE ..................... 20"
TABLE FEED PER REV. OF HANDWHEEL:
FAST ....................................... 2-13/16"
SLOW .......................................... 9/16"
CROSS FEED ....................................... 8"
FEED PER REV. OF HANDWHEEL (.001" GRAD.) ,,... 0.100"
VERTICAL MOVEMENT OF COLUMN ................. 10-1/2"
FEED PER REV. OF HANDWHEEL (.001" GRAD.)...... 0.050"
COLUMN DIAMETER .................................. 6"
MINIMUM/MAXIMUM DISTANCE CENTERLINE OF WHEEL
SHAFT TO TABLE ......................5-3/8" / 15-1/4"
MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE
OF STRAIGHT WHEEL; DOVETAIL SLIDE NOT EXTENDED,
SPINDLE 90 DEG. TO TABLE .................... 4-5/8"
OF STRAIGHT WHEEL; DOVETAIL SLIDE EXTENDED,
SPINDLE 90 DEGREES TO TABLE ................. 9-1/4"
TABLE SWIVELS (CALIBRATION: 3" PER FT.,
15 DEG. EITHER SIDE OF CENTER) .......... 225 DEGREES
WHEEL HEAD SWIVEL ........................ 360 DEGREES
MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" ..... 1-1/4"
MAXIMUM CROSS FEED SURFACE GRINDING W/8" WHEEL..... 3"
SPINDLE SPEED RANGE ................. 3450 TO 17250 RPM
APPROXIMATE MACHINE WEIGHT ................. 1,300 LBS
FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE
"DAKOTA" SERIES #B6055 UNIVERSAL GRINDING WHEELHEAD
- SWIVELLING & TILTING (22 DEG. EITHER SIDE
- 1 HP MOTOR WIRED FOR 3/60/460 VOLT OPERATION
- 3/4" TO 6" DIAMETER WHEELS (O.D. GRINDING)
(1) HIGH SPEED GRINDING HEAD, QUILL ASSEMBLY B6055A
(1) UNIVERSAL TOOTH REST B6040
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
