Johnford dmc 1500H double column machining center

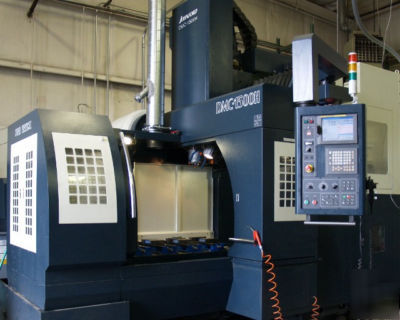

Johnford DMC-1500H Double Column Machining Center
Longitudinal Travel (X) Axis: 59.1
Table to Spindle 5.9 min/35.9 Max
Distance Between Columns 43.3
Table Working Surface 63 x 33.5
Maximum Workload on Table 10,120 lbs.

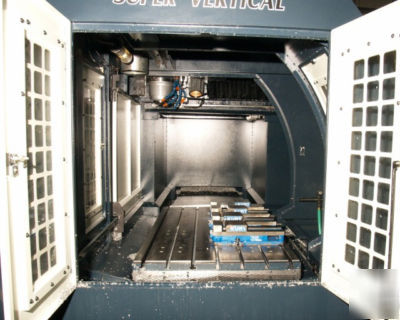

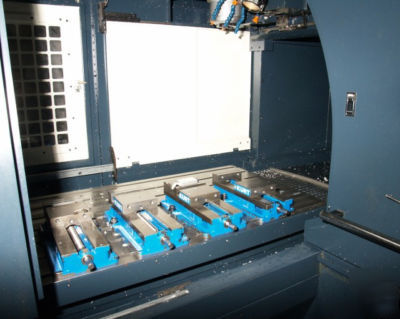

Table Surface Ground / T-slotted
Spindle Drive System 2 Speed Gear Box

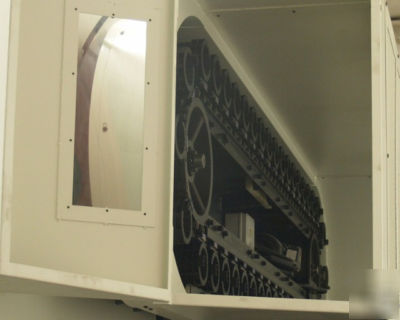

Automatic Tool Changer (arm type):
Tool Selection Bi-directional-random
Tool Change Time 3.5 sec tool to tool
Maximum Tool Diameter 5.3 with adjacent tools, 7.8 without
X-Y-Z Ballscrew Diameter 2.0 X, Y, Z x 10 pitch
Ballscrew Type Class 3 double nut pre-loaded
Ballscrew Mounting Type Pre-tensioned
X-Y-Z Servo Motor HP 5.2-5.2-5.2 HP
Servo Motor Mounting Direct coupled XY, 3:5Z
Rapid Traverse Rate X, Y, Z 944, 944, 590 IPM
Positioning Accuracy +/-.0003 full stroke
Coolant Tank Capacity 120 Gallons
Machine Weight (base machine only) 33,000 lbs.
Floor Space 186 x 118 x 148
Machine Power Source 208/220 Volts, 3Phase 125 Amps**
Flood Coolant System with programmable air blast

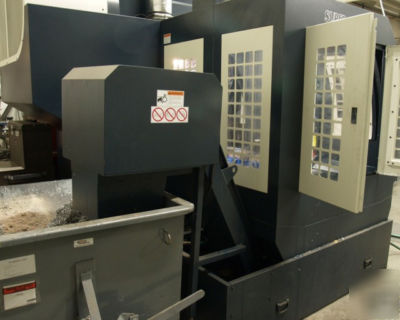

Automated chip removal system with chip conveyors
2 speed geared with spindle / headstock cooler
Heat exchangers for control cabinets
Hydraulic counterbalance for headstock
1,000 PSI High Pressure Coolant Through Spindle including the Pump
Optional Control Features Fanuc 18iM-B
PCMCIA memory card interface (front panel)
Ethernet connection / network connection (service only)
Remote diagnostics via internet
Controlled Axis: 3 axis standard (up to 6 Axis opt)
Simultaneous Controllable Axis: 3 axis standard (up to 4 Axis opt)
Multi-Quadrant Circular Interpolation
Polar coordinate interpolation
Automatic Acceleration/Deceleration
Reference Point Return (G27, G28, G29)
Coordinate System Setting (G92)
Automatic Coordinate System Setting
Absolute / Incremental Command
Decimal Point Input / Pocket Calculator Type
Tool Length Compensation (G43, G44, G49)
Tool Offset Amount Memory (200 Pairs)
Program Stop/Program End (M00, M01, M02, M30)
Incremental feed (X1, X10, X100, X1000)
Spindle orientation - magnetic high speed
Stored Pitch Error Compansation
Optional chamfering / corner rounding
Run Hour/Number of Parts Display
Work Coordinate System (G52-G59)
Fanuc 18iM-B Optional High Speed Machining Functions For Mold / Die (Option #1)
AI NANO Contour Control (180 blocks look ahead / 30,000 blocks / min processing)
Servo HRV control (High Response Vector) provides smooth finish at high speed
High speed serial servo bus (FSSB) with fiber optic cable connection from CNC to servo amps
New Fanuc Alpha i Series servo motors with 1,000,000 pulse per revolution encoders
New Alpha motors provide much higher torque / less inertia than previous system for fast acc dec
Fanuc 18iM-B Optional High Speed Machining Funcitons for Mold / Die (Option #2)
AI Nano High Precision Contour Control (600 blocks look ahead / 150,000 blocks / min processing) with 64 Bit RISC processor
640 MB ATA Card (built-in type) for mass program storage and ethernet connection
DMC-1500H Stock Serial # VEC 8062 $212,800.00
Optional items included with system:
Fanuc 18iMB control in place of Fanuc OiM-C control $10,555.00
40 Tool ATC (upgrade from 24 tools) $19,000.00
8,000 RPM Johnford ceramic bearing spindle $19,500.00
Heidenhain linear scales on XYZ $9,000.00
NURBS processing (AI NANO HPCC Required) $3,000.00
Full Manual Guidance i Conversational Programming Pkg.$7,500.00
Total Investment (Sept. 2008) for DMC 1500H Stock VEC8062 $281,355.00
Call today for significant savings! 918-234-TOOL
