Plessey radio pv 924 wideband distribution amplifier

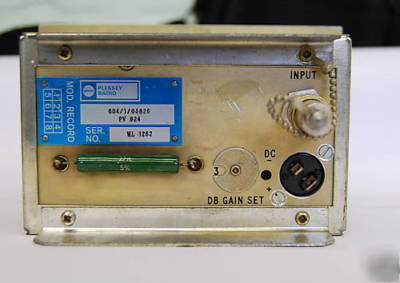

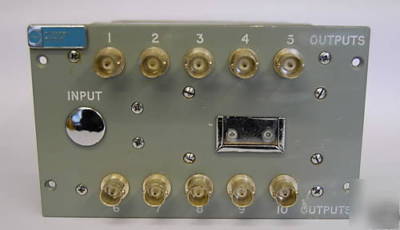

Plessey Radio PV 924 MF/HF Wideband Distribution Amplifier
This is a general purpose wideband amplifier. It has a primary application as an aerial amplifier, or aerial multicoupler, and can also be used for the distribution of high level signals.
* Frequency Coverage: 0.5 to 30 MHz
* Input & Output impedances: 75 ohm nominal via BNC connectors
* Gain: can be set by a soldered link to : 0, 1, 2 or 3dB nominal
* Overload Point: 1.5V peak e.m.f from 75ohm Source
* Isolation between outputs: 30dB minimum, 40dB typical
* Isolation between output and input: 50dB minimum, 60dB typical
* D.C requirements per amplifier: 24.0V, 0.6amps via barrier terminal block
Condition: Used, in ok condition, checked and working. Complete with service manual
