Nsk spindle and brushless motor EM505 & NR402E
This NSK Spindle can be used for small-diameter milling, drilling, slitting, chamfering, grinding, etc. The external housing is made of stainless(SUS416). It is designed to withstand the pressure of machine attachment.
Allowable Motor Speed: 40,000 rpm
Spindle Accuracy: Within 1 m
Standard Size Collet Chuck (CHK-3.175): 1/8"
NSK Catalog Number: ASE1514 (Formerly NR-402E)
Collet Chuck 1/8" (CHK-3.175)
Wrench (12 x 14): 2 pcs., (22 x 27): 1 pc.
Motor Speed: 2,000~50,000 rpm
Housing: Stainless Steel (SUS416)
Cord: 13 ft. long (with Quick Disconnect)
Air Coolant Hose: 13 ft. long
Both of these items have been discontinued by NSK.

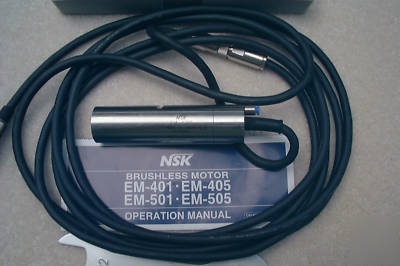

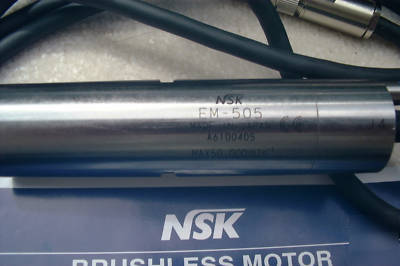

The EM-505 Motor is brand new and unused. It comes with the operation manual, hose, and wrenches.

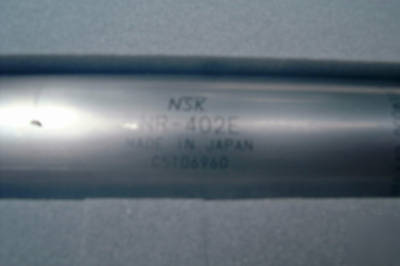

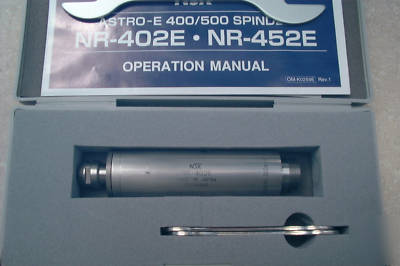

The NR-402E Spindle is unused. It has been used as a mechanical test spindle to check size of clamping fixture.The OD of spindle does have some minor scratches and 1 nick as shown in picture #4. The spindle has never beenrun. Again, it was only used to check mechanical fitting when designing fixtures.
The list prices of the motor and spindle is over $1850.00
