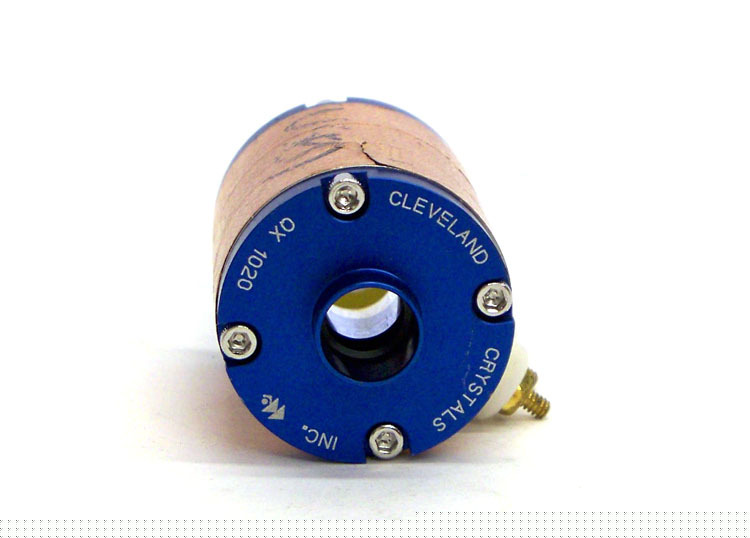

Cleveland crystal qx 1020 q-switch laser pockels cell
Cleveland Crystal QX 1020 Q-Switch Laser Pockels Cell
Cleveland Crystals QX 1020 Q-Switch Laser Pockels Cell
This unit is used but appears to be in excellent condition.
The QX series sets the standard for KD*P electro-optic Q-switches. These devices provide reliable, stable performance for a diverse range of laser applications.
Cleveland Crystals offers a unique rebuild program that extends the QX lifetime. All rebuilt units are upgraded with the latest product improvements and are returned with a new one-year warranty. Contact manufacturer for more information regarding this.
Typical Specifications 99% KD*P
Hard Aperture Diameter- 9.25mm
Single Pass Insertion Loss -<1.4%
DC Quarter wave voltage @1064nm- 3.2kV
Single Pass Distortion @ 633nm- <\/8
10-90% Rise Time (50 Ohm Line ) 0.8 ns
* Industry-proven performance
* Highest (99.9% KD*P) deuteration levels in industry
* Adhesive/Epoxy-free assembly
* Premium UV-grade fused silica windows
* Apertures from 9.25mm diameter up to 19.5mm diameter
* Lowest absorption in industry
* Economical upgrade/rebuild program
* Highest optical damage thresholds
* Accessible technical support
* Standard performance documentation
* One-year limited warranty
* Operation up to 10kHz (special order)
