> 33-892 delta 12" radial arm saw 3 phase, list $5440.
33-892 delta 12" radial arm saw 3 phase, list $5440.

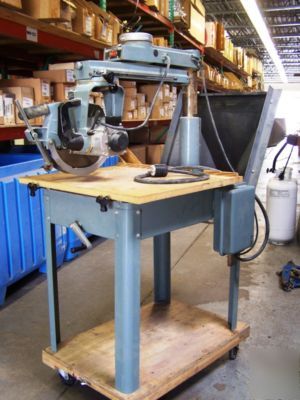

33-892 DELTA 12" RADIAL ARM SAW 3 PHASE MOTOR WITH LOW VOLTAGE CONTROL.
GENTLY USED: INCLUDES STAND AND CUSTOM DUST COLLECTOR ATTACHMENT
*Unique turret arm action permits saw blade to rotate 360 above work table, giving full table capacity for left and right hand miters.
*Rigid channel, cast-iron frame, and heavy column provide perfect alignment and continued accuracy.
*Precision indexing with positive stops for 90 and 45 miter cuts is precision machined for lifetime accuracy.
*Track rods feature glass smooth hardened surfaces to minimize rolling friction. May be rotated 180 for new bearing surface.
*3 phase motor with Low Voltage Control (LVC) system.

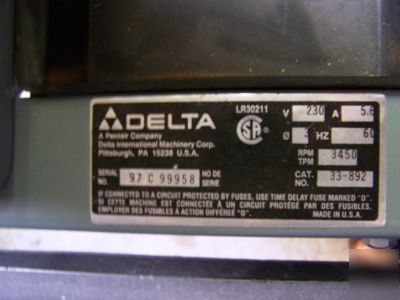

Delta Model 33-892 12" Radial Arm Saw with a 2 HP, 200-230/460 Volts, 60 hz, 3450 RPM, Low Voltage Control (LVC), Three Phase Motor; on-off, key lock switch and overload protection, set of legs, automatic mechanical brake, blade guard with anti-kickback attachment, retractable leaf guard, 12" combination blade and wrenches.
MOTOR: 2 HP, 200-230/460V, 60 hz, 3 Phase (LVC)
BLADE: Diameter (supplied): 12" (305mm), Arbor: 5/8" - 12 LH. Acme (16 mm)
*Max depth of cut: 3-3/4" (95 mm)
*Dado capacity: 13/16" (921 mm)
*Max depth of cut at a 45 bevel: 1-1/4" (46 mm)
*Size: 25-1/2" X 30" (647 X 762 mm)
