MINI2440 - S3C2440 ARM9 board + vga conversion module

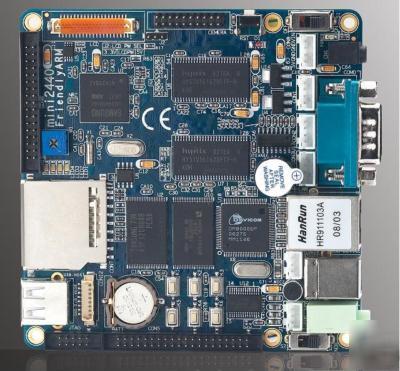

MINI2440 - Samsung S3C2440 ARM9 Development Board
- Samsung S3C2440A 400MHz, Max freq. 533Mhz
- 2MB Nor Flash, BIOS installed
- 4 wire resistive touch screen interface
- Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
- Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels

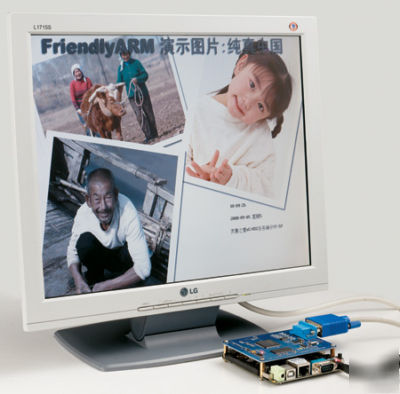

- In box up to 1024x768@70Hz VGA conversion module
- 1 x 10/100M Ethernet RJ-45(DM9000)
- 3 x Serial Ports(1 RS232 with CTS and RTS)
- 1 x Stereo audio out, 1 Micro In
- 1 x Power In(5V), with switch and lamp
(1) 1 x S3C2440 board (Preload with Linux)
(6) 1 x JTAG board(for H-JTAG)
(7) 1 x DVD-ROM with product reference

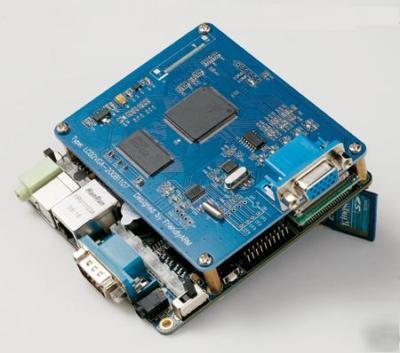

(8) 1 x 1024x768@70Hz VGA conversion module (Link to description >>>>1024x768@70Hz VGA Module for mini2440<<<<)
(2) Windows Flash Programmer SJF2440
(3) Linux Nand Flash Programmer Jflash-2440(source code included)
(5) Bitmap to C Language transfer tool
(7) vivi source code(linux bootloader)
(8) LED test program(ADS1.20 project)
(9) 2440test program(ADS1.20 project), include :
key test, RTC test, ADC test, IIS Audio play(wav), IIS Audio record,
touch screen test, I2C test, Samsung 3.5"LCD, 640x480 TFT, 1024x768 TFT test
(10) WindowsCE 5.0 BSP and sample project files.
(11) Pre-compiled WinCE 5.0 image for evaluation
(12) Linux tool and kernel source codes
- arm-linux-gcc-4.3.2 with EABI
- yaffs2 file system image maker -mkyaffs2image
- linux-2.6.29 for S3C2440 kernel source code(include DM9000, LCD driver, Audio,
Touch screen, YAFFS Source code, SD Card, RTC, Expand serial driver,
USB Camera,USB Mouse and Keyboard, U-Disk)
(13) Pre-compiled Linux image for evaluation
(14) Qtopia 2.2.0 source codes, web browser source codes
(15) Schematics(Protel99SE/PDF)
