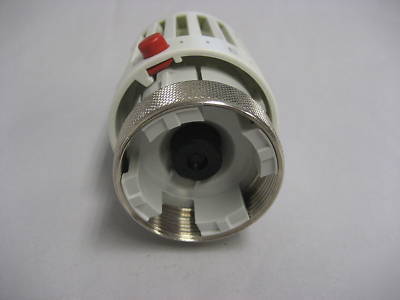

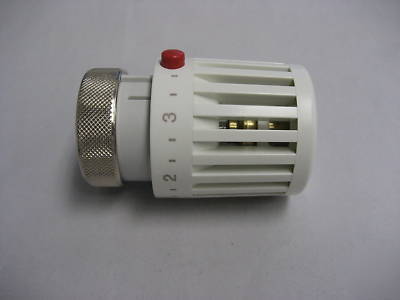

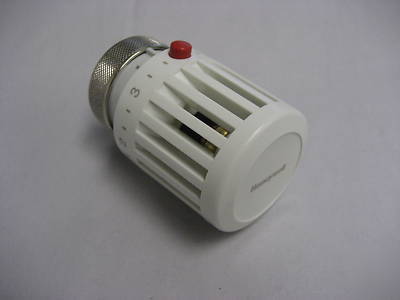

Honeywell T104A1040 high capacity radiator actuator
High Capacity Thermostatic Radiator Actuator with integral sensor and 1 19/32 in. collar diameter
Provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating.
Designed with the higher capacity normally required by North American heating systems.
Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
Require no electrical connections.
Meet ASHRAE Standard 102-1989.
Self-contained controller with sensor, setpoint dial and valve actuator in one unit. Adjustable limits. Mount horizontal. Not for use inside enclosures or in locations with restricted airflow around sensor. For V110 valves.
High Capacity Thermostatic Radiator Actuator
