Keithley bnc / din / DB25 adapter board

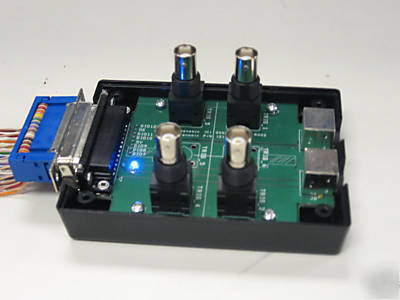

This is a small passive adapter board to match the following:
1) BNC trigger and synch cables of older Keitley Instruments equipment (such as the model 707 switching system) as well as many modern instruments from other manufacturers.
2) DIN Trigger link ports of such instruments as Keithley 2400 source meter and 7001 and 7002 switching systems
3) DB-25 Digital I/O connector of the Keithey 2600 series source meter system (models 2601 and 2602)
Respective channels of the digital i/o and triggerlink buses are connected.
BNC terminals for trigger link and digital i/o channels 1 - 4 are mounted. Terminals for channels 5 - 6 can be added.
The number of boxes (top not shown) is limited. We are offering only the board. Please indicate if you need a box and we will send one at no extra charge if available.
