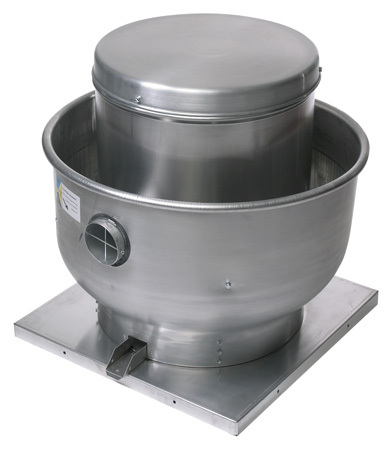

Fantech 5BDU12CB belt drive upblast roof /wall vent
FANTECH Belt Dr. Upblast Roof/Wall Ventilator 12.25" 1/3HP
This listing is for a 12-1/4" Wheel Diameter 1/3HP. New Unit
* Permanently lubricated ball bearings.
* Open dripproof motors are factory wired with 6' pigtail; Wired 115V, and can be re-wired at motor for 230VAC
* Variable pitch motor sheaves allows for 25% speed/CFM reduction
* Full range of additional sizes, HP and voltages available. Please contact us.
* Performance shown is for Installation Type A: Free Inlet, Free Outlet. Performance ratings include the effects of birdscreens in the airstream.
* The Sound Ratings shown are loudness values in fan sones at 5-ft. (1.5M) in a hemispherical free field calculated per AMCA Standard 301. Values shown for ventilators listed are for: Installation Type A: Free Inlet fan sone levels.
* Power ratings (BHP) do not include drive losses.
* Roof Curb Non-vented Order #73709X $114.08
* Roof Curb Vented Order #83709X $178.59
* Roof Exhaust Damper Order #45898X $22.30
* Bird Screen Order #62709X $43.84
