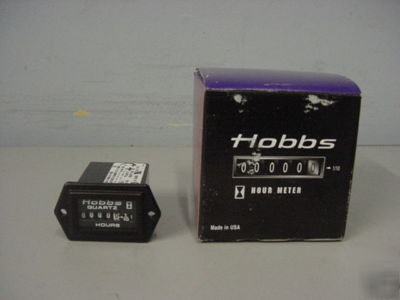

New hobbs honeywell 85000 10-40V dc hour meter in box
This item will be sold with a "30 DAY WARRANTY"
Information below is directly from honeywell's website.
The 85000 Series provides legendary Hobbs performance and reliability in a technically advanced quartz package. The Quartz Plus features a highly reliable drive mechanism, an improved odometer gear train, and a snap-together integrated chassis. The chassis fits into a shockproof, totally-sealed case made of an engineered plastic that is impervious to acids and solvents.
* 10,000 hour version standard, with automatic recycle to zero
* Quartz accuracy: 200ppm, 0.02% (entire voltage and temperature range)
* Operating voltage range: 5-110 VDC (Voltage range covered by 85000 Series line)
* Precision built relay driven odometer
* Excellent vibration & shock resistance: Vibration: 20 g's @ 10-80Hz (SAE J1378) 10 g's (per MIL-M-3971) Shock: 55 g's @ 9-13msec (SAE J1378) 75 g's (per MIL-M-3971)
* Transient Voltage Protection Alternator load dump: 150V EMI (Electromagnetic Interference): +400V @ 500Hz Inductive switching and reverse polarity
* Standard terminals: 1/4" male blade
* Custom CMOS integrated circuit
* Indicates operating time in hours and tenths, plus has a running indicator
* Battery system voltages: 6,12,24,36,48,60,72,and 80 VDC
* UL Recognized (File number AU1774)
* CSA Certified (File number LR42455-12)
Custom logos, polycarbonate lenses, and various bezels. Wire, stud, blade, and screw terminals. 100,000 hour, R-Terminal and filtered versions available too.
* Panel cutout dimensions are .010 tolerance All dimensions shown in inches and (metric)
Includes hardware and instruction sheet.
{Please contact me with any questions}
All items are professionally and safely packaged.
