Superb doall 2013V variable speed vertical band saw

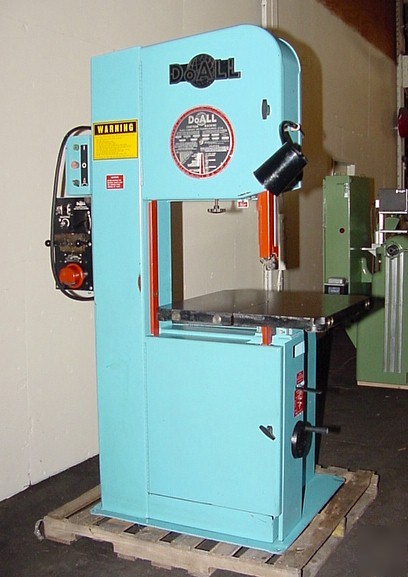

SUPERB DoALL 2013V VARIABLE SPEED VERTICAL BAND SAW
MODEL: 2013-V, S/N: 457-911921, NEW: 1991
THROAT, BAND TO COLUMN ............................ 20"
MAXIMUM WORK HEIGHT ............................... 13"
BAND WIDTH CAPACITY ........................ 1/16" - 1"
SAW BAND LENGTH .................................. 154"
FILE BAND LENGTH ................................. 153"
BAND SPEED RANGE, VARIABLE TWO RANGES:
LOW RANGE .......................... 55 TO 300 FPM
HIGH RANGE ...................... 960 TO 5,200 FPM
TABLE SIZE .................................. 26" X 26"
TABLE TILTS ......... 45 DEGREES LEFT, 10 DEGREES RIGHT
MAXIMUM WEIGHT ON TABLE ....................... 500 LBS
APPROXIMATE MACHINE WEIGHT .................. 1,250 LBS
APPROXIMATE DIMENSIONS ....... 48-1/2" X 42" X 81-1/2"H
DOALL MODEL: DBW 15, BLADE WELDER & GRINDER
2 HORSE POWER BLADE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
