Scharmann horizontal boring mill, cnc rotary table FB16

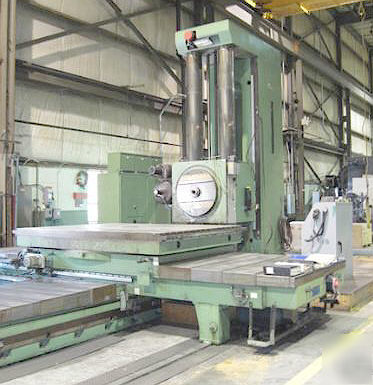

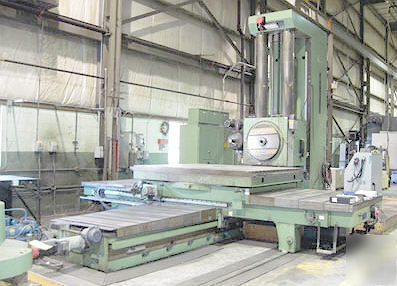

Scharmann Horizontal Boring Mill, CNC Rotary Table FB160
Working Surface of Table: 98.5" L-R x 78.5" F-B
B-Axis (Built in Rotary Table): 360 Degree Rotation
Travel of Facing Head Slide: 5.5"
Table Load Capacity: 60,000 Lbs.
1995 Retrofit by R D & D Heerhules, Erie, PA
Retrofit with Fanuc 16 MB Control: 4-Axis X, Y, Z, W

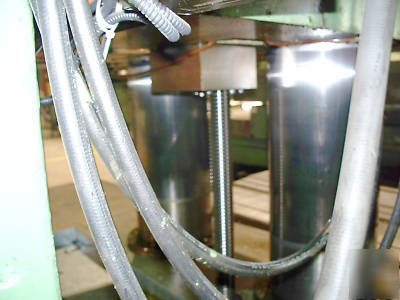

Ball Screws Added to X, Y, Z, W with Red Cap Servos
Heidenhain Scales Installed on X, Y, Z, W
Heidenhain Rotary Encoder and Read-Out Box Installed on Rotary Table
Smallest Increment of Movement: Unknown
Rotary Table is Not Programmable
Allen-Bradley High Performance DC Spindle Drive
Facing Head Slide Power Driven Via Baldor Motor (Not Programmable)
Expansion of Simultaneously Controlled Axes
Stored Pitch Error Compensation
Additional Tool Offset Pairs - 64 Total
Load Option Assembly A1, 16 MB

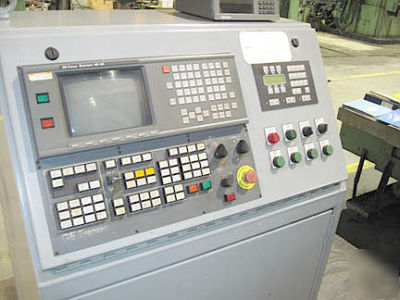

Fanuc Operator Control Stand with Wired MPG
Hard Replaceable Wear Strips on Bed and Saddle

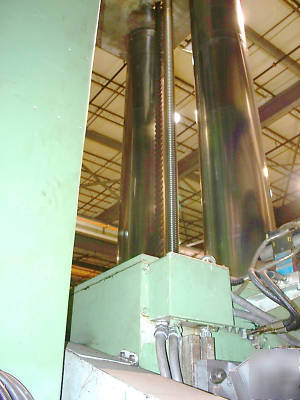

Vertical Column Guides in Excellent Condition
Tailstock with Power Travel on Bed and Manual Cross-Sliding Base: Approx. 79" of
(2) Out Riggers for Saddle (Both Sit Below Floor Line)

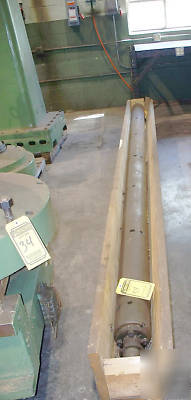

(1) 50 Taper Boring Bar: 154" Long x 6" Diameter
Counter Weight for Machine Head Will Require 60" Deep Pit Below Floor Line
8.5/22 KW Main Spindle Motor with Blower and DC Tachometer

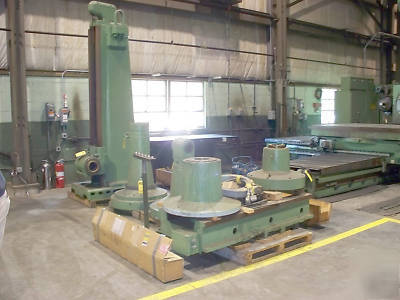

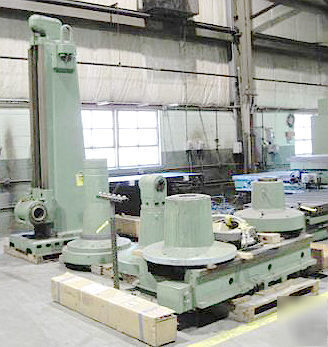

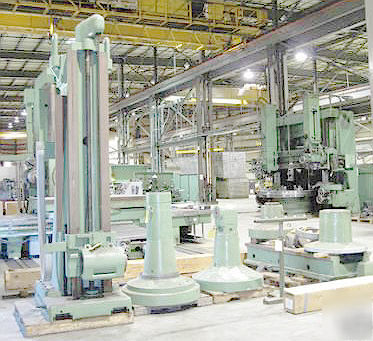

Table and Saddle Section: 228" L-R x 88" F-B x 48" H x 39,250 Lbs.

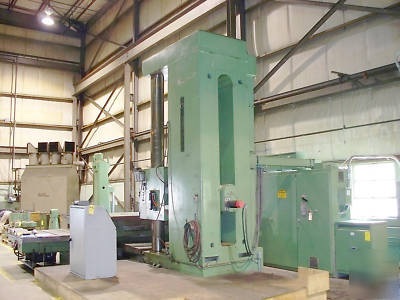

Column: 153" L-R x 45" F-B x 52" H x 15,700 Lbs.

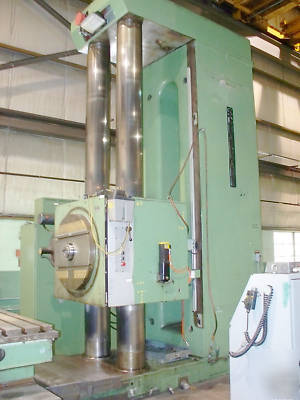

Head: 117" L-R x 76" F-B x 48" H x 14,000 Lbs.
Tailstock: 133" L-R x 40" F-B x 48" H x 7,100 Lbs.
Bed: 312" L-R x 48" F-B x 36" H x 21,000 Lbs.
Column #1: 149" Long x 16" L-R x 16" F-B x 4,750 Lbs.
Column #2: 149" Long x 16" L-R x 16" F-B x 4,750 Lbs.
Out Rigger #1: 194" L-R x 10" F-B x 8" H x 1,550 Lbs.
Out Rigger #2: 194" L-R x 10" F-B x 8" H x 1,550 Lbs.
Electrical Control Cabinet: 106" L-R x 26" F-B x 105" H x 2,800 Lbs.
Column Cap: 90" L-R x 46" F-B x 20" H x 3,900 Lbs.
Transformer: 33" L-R x 21" F-B x 44" H x 750 Lbs.
Angular Milling Head: 40" L-R x 40" F-B x 43" H x 1,100 Lbs.
Spindle Support #1: 30" L-R x 30" F-B x 22" H x 830 Lbs.
Spindle Support #2: 32" L-R x 32" F-B x 21" H x 885 Lbs.
Spindle Support #3: 38" L-R x 38" F-B x 51" H x 1,625 Lbs.
Fanuc Control Stand: 38" L-R x 24" F-B x 53" H x 400 Lbs.
Boring Bar: 168" L-R x 9" F-B x 12" H x 1,340 Lbs.
Counter Weight: 128" L-R x 28" F-B x 12" H x 7,000 Lbs.
Base Section of Tailstock: 80" L-R x 30" F-B x 16" H x 2,550 Lbs.

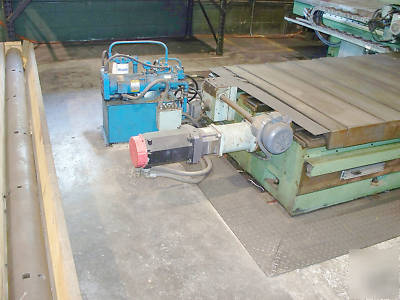

Hydraulic Pump: 34" L-R x 26" F-B x 27" H x 190 Lbs.
We have a videos of this machine under power, following link: http:// /watch?v=6RHl3UvT34c
