New AD633 / AD633JN analog analogue multiplier dil ic
AD633 Analog Multiplier IC 8-pin DIL

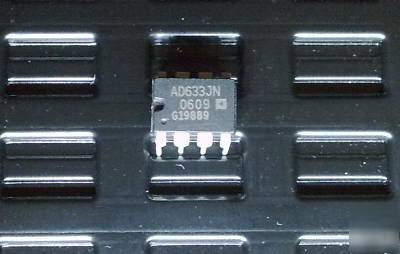

This is one piece of the Analog Devices AD633JN IC which is new, fresh from the delivery tube.
Here is a link to the data sheet:
http:// /static/imported-files/data_sheets/ad633.pdf
It is used in a variety of applications in analogue synthesisers, frequency shifters, modulators and demodulators etc as seen here:
http:// /analogsynth/RINGMODULATOROCT2007/RINGMODULATOROCT2007.html
http:// /diy/Schematics/Ring%20Modulators%20and%20Frequency%20Shifters/AD633%20Ring%20Mod%20with%20LFO.jpg
The J suffix refers to the commercial temperature operating range of 0 to 70C.
The N suffix refers to the plastic DIL package.
The Analog Devices web page lists the following features:
http:// /en/other-products/analog-multipliersdividers/ad633/products/product.html
Low Cost 8-Lead SOIC and PDIP Packages Complete -
No External Components Required
Laser-Trimmed Accuracy and Stability
Total Error within 2% of full scale
Differential High Impedance X and
High Impedance Unity-Gain Summing
Input Laser-Trimmed 10 V Scaling Reference
