> Ikeda 4' x 11" radial arm drill

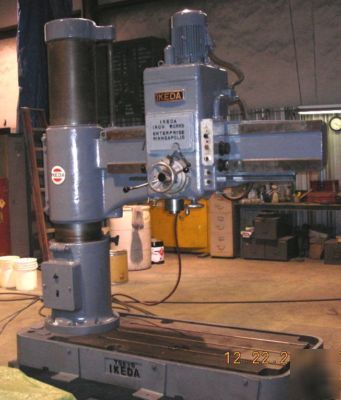

Ikeda 4' x 11" radial arm drill
Mode l 300 S/N 77099 New in 1977
Maximum distance between the outer circumference of
column sleeve and the center of the spindle: 54-1/2"
Minimum distance between the outer circumference of
column sleeve and the center of the spindle: 10-3/4"
Maximum distance between the lateral side of the
column and the center of the spindle: 52-5/8"
Minimum distance between the lateral side of the
column and the center of the spindle: 9"
Maximum distance between the spindle end and the
upper surface of the base: 56-3/4"
Minimum distance between the spindle end and the
upper surface of the base: 15-1/4"
Working surface of the Base 57 x 36
Diameter of column sleeve: 13-5/8"
Bearing diameter/quil: 2-3/8" / 3-5/8"
Taper of the hole in the spindle: MT No. 5
No. of steps and speed range of spindle: 12 Steps, 30 - 1,440 rpm
No. of steps and feed range for spindle: 4 Steps, 0.004 - 0.021 in/rev.
Floor area required for base: 81-5/8" x 36"
Distance between the column center and the left end of base: 15-1/2"
Distance between the column center and the right end of base: 62-1/4"
Distance between the column center and the arm tip: 68-3/4"
