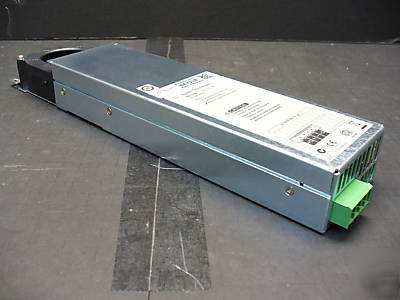

Agilent / hp N6731B dc power module, 5V, 10A, 50W
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single low-profile modular power system, 50-300 W, GPIB, LAN, USB, LXI Class C N6700B series provides small size up to 4 outputs in 1U of rack space; 20 DC power modules, basic, performance and precision models; as well as fast output programming with active down programming. The Agilent 50W, N6731B is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control. Output Ratings
Current (derated 1% per C above 40 C): 10 A / 20 A
Programming Accuracy (at 23 C 5 C after 30 minute warm-up. Applies from min. to max. program)
CV peak-to-peak: 10 mV / 11 mV
Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
