> 3M-matic l-clip applicator s-867
3M-matic l-clip applicator s-867
FOR SALE IS A DEMO MACHINE IN EXCELLENT, CLEAN CONDITION. This machine was purchased new for purposes as a demo machine and never placed into production. We are starting at a fraction of what a new machine sells for. List price on a new machine is $6400.00 for the tape head only, stand lists for $495.00Less than 500 cycles on this machine. Only need air to operate this equipment. Single Head Stand and casters included. Manufacturers SpecificationsManually sealing non-RSC style boxes may add time and effort to packaging operations. These case stylesinclude five panel folds, full overlap, telescoping and truck fold. The 3M-Matic L-Clip Applicator S-867provides a cost-effective, time-saving solution by applying L-clips of tape securely and with less effort. Semi-automatic unit applies pre-fed 4.5" L-clips of Scotch Filament Tapes and Scotch Box Sealing Tapesat up to 50 clips per minute. This innovative process eliminates the set time and waste of water-activatedtape and the sharp points of staples. Fill pneumatic operation with no electric power needed.

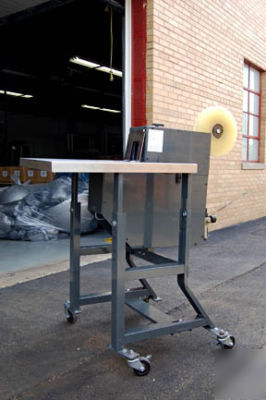

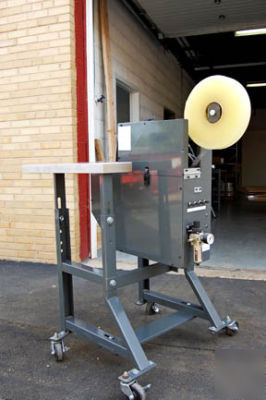

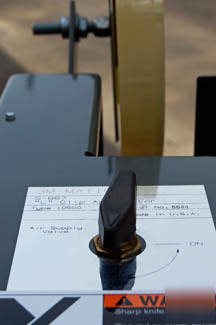

Air pressure and flow controls optimally positioned to reduce unnecessary operator adjustments,improve ease of maintenance access and add floor layout versatility. Ability to position taping heads closer together to apply clips as close as 8" apartOil-less operation to reduce maintenanceWide selection of tape widths: 9mm, 12mm, 15mm, 18mm, 24mm and 36mmCase-activated switch plateAir shut-offIncludes Optional single head standIndustrial-duty construction

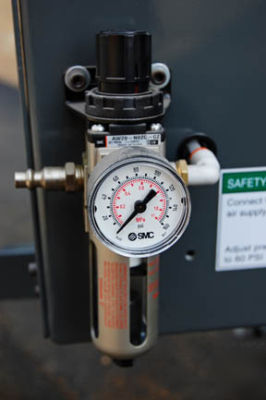

Box: Bottom taping position:Size: Min: 2.25"(60mm)H x 5"(130mm*)W x 2.25"(60mm)D Max: No limitBox: Top taping position:Size: Min: 2.25"(60mm)H x 5"(130mm*)W x 2.25"(60mm)D Max: No limit)Tape:Scotch Filament TapeWidth: 3/8"(9mm) min to 1.5"(36mm) maxRoll Diameter: up to 15"(380mm) max on 3"(76.2mm) diameter coreApplied Tape Length: 4.5"(115mm) (normal). Tape legs are 2.25" +/- .125"(55mm+/-3.2mm)Machine:Cycle Time: 1.2 secondsPower: 60 to 65 psig [515kPa - 560kPa] 2.16 SCFM at max cycle rate. Pressure regulator-filter-lubricator includedLength: 31"(790mm) (includes 360 yard(330mm) tape roll)Height: 29"(735mm) (includes 360 yard(330mm) tape roll)Width: 11"(280mm)Weight: 75 lbs.(34kg) unpackaged/83 lbs.(37.7kg) packagedOperating Conditions: Use in a dry, relatively clean environment at 40F to 120F with clean, dry boxes
