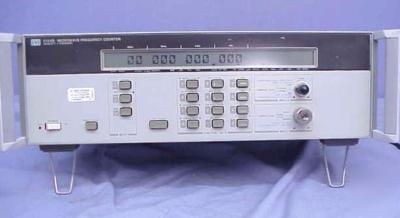

Hp 5352B 40 ghz frequency counter w/hi stab osc. tested
NOTE: This is not a converted 5350B but a True 5352B.
Counter is in excellent physical and working condition and has been fully tested to 40 GHz using a sweeper.
Sold with a 7 Day Inspection/Return Privilege if not completely happy.
The Agilent 5352B provides fast and precise measurements from 10 Hz to 40 GHz and features microwave components
that are integrated on a single hybrid gallium arsenide (GaAs) circuit for added speed and reliability. The 5352B distinguished
by wide frequency coverage, exceptional sensitivity, fast tracking, high measurement throughput, and wide FM tolerance.
Built-in microprocessors provide math functions, including measurement scaling and offset. Automatic amplitude discrimination
measures the frequency of the highest-amplitude signal in a multi-signal environment. A full set of diagnostic routines provides
general information and troubleshooting. The 5352B integrates easily into test systems. English-like commands simplify
integration with other components, and the easy-to-read liquid crystal displays can serve as message centers for the system.
* 10Hz to 40 GHz directly measures in millimeter wave range, without expensive mixers
* Measures frequency, period, period average, ratio, totalize, and time interval
* Sensitivity to -32 dBm ensures accurate measurement of low-energy signals
* Fast acquisition time (60 ms in automatic, fast acquisition tracking mode; 20 ms in manual mode)
* 120 measurements per second over HP-IB.
* Fast tracking speed allows effortless tracking of source drift to 1 GHz per second; ideal measureing the response of voltage-controlled oscillator to voltage-source tuning
* Low kickback noise for sensitive environments; sleep mode reduces noise to -70 dBm
* Has Option 010 High Stability Ovenized Time Base/Oscillator
Sold with a 7 day inspection return privilege if not happy.
