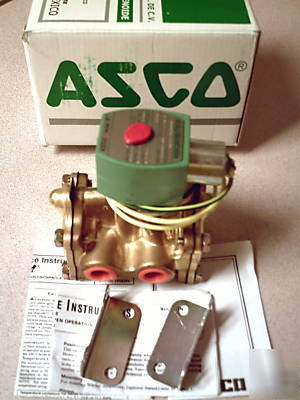

Asco solenoid valve 3-way 8316G54 8316G54-120/60
Solenoid Valve 3-Way NC 3/8", 120/60
ASCO Red Hat pilot operated 3-way normally closed solenoid valves will provide control of air, inert gas, water, and other clean flowing media compatible with the materials of construction. These heavy-duty brass body diaphragm poppet valves have resilient seating for tight shutoff. This valve has three ports - one inlet, one outlet and one exhaust port. The inlet flow is blocked and the outlet is connected to the exhaust port with the coil de-energized. The inlet flow is connected to the outlet with the coil energized. 8316 series valves can be mounted in any position and can be used to pilot large process valve actuators.
Type: 3-Way Normally Closed (energize to open)
Pipe Size: 3/8" NPT, 5/8" Orifice, Cv 3
Flow Rate (Min-Max): 9.5-33.5 GPM (water), 41-296 SCFM (air)
