Watercooler - water recirrulator for mig & tig machines
WATERCOOLER - Quality british built

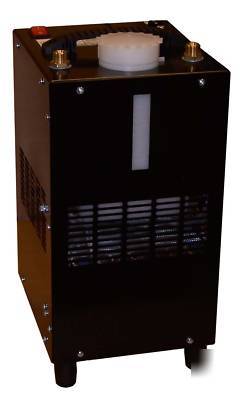

This Watercooler is a very compact and robust unit fitted with a long life rotary pump.
The watercooler is suitable for most welding applications upto 600A for mig welding and 400A for tig welding, and resistance welding upto 45kva.
The unit has standard 3/8bsp fittings for the water connections (snap connect fittings available upon request).
The watercooler are available with 110v, 230v, or 400v input. Please specify which one you require when ordering.
110v input +/- 10% Freq: 50/60Hz, Input current: 3A
230v input +/- 10% Freq: 50/60Hz, Input current: 1.4A
400v input +/- 10% Freq: 50/60Hz, Input current: 1A
Flow rate: Max 10 litres/min (typ. 2-3 litres/min through torch)
Cooling capacity: 900 watts / 21`C rise above ambient.
Typical applications: Mig to 600A, Tig to 400A, Resistance welding upto 45KVA.
Approx dimensions: 245mm length, 210mm width, 430mm height.
ONE YEAR (RTB) WARRANTY INCLUDED.
PLEASE VIEW OUR OTHER ITEMS FOR SALE INCLUDING VARIOUS OTHER MIG AND TIG TORCHES, AND A UNIVERSAL WIRE FEED ASSEMBLY KIT, AND GAS SOLENOIDS.
Technical Arc Services, Outgang Lane, Osbaldwick. York. YO19 5UP.
Delivery is 8.00 to most main land UK destinations. Please contact us for cost to other destinations.
