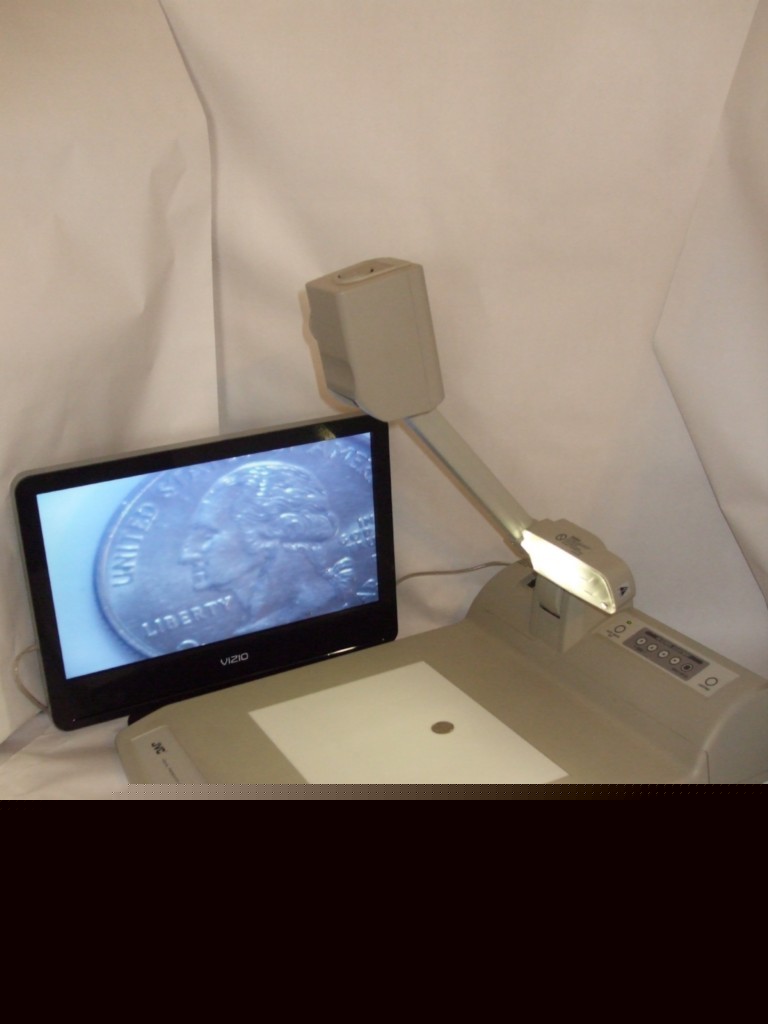

Jvc pro color visual presenter document camera overhead
JVC PRO visual presenter av-p720u
On-screen menu for operational simplicity
Camera head rotation control
Single bright light-source for both OHP and slide film
One AV input for easy video equipment connection
Power requirements AC 100 V to 120 V, 50/60 Hz
Operating temperature 5 C to 40 C (41 F to 104 F)
Dimensions (W x H x D) 450 x 585 x 605 mm (open)
(17-3/4" x 23-1/16" x 23-7/8")
450 x 230 x 605 mm (closed)
(17-3/4" x 9-1/16" x 23-7/8")
Lens F1.6 to F2.6, f = 4.0 mm to 64 mm
Shooting area 350 x 260 mm max.
Focal distance 90 mm (3-9/16") above the platform
surface (with close-up lens)
to 0.9 m (2.9 ft) (without close-up lens)
Zoom control Motorized (user control)
Center light 1 x 6 W (fluorescent)
Image pickup device 1/4" interline-transfer CCD
Total number of pixels 410,000
Synchronization system Internal
Horizontal resolution 450 TV lines (Y signal)
Vertical resolution More than 350 TV lines
White balance Auto/Auto White Set/manual
Contour correction Soft/Normal/Sharp
Negative/positive inversion Neg/Pos
BW/color selection BW/Color
Input terminals Composite video: RCA pin x 1,
Output terminals Composite video: RCA pin x 1
