Easy isp microchip pic jdm programmer: winpic, ic-prog

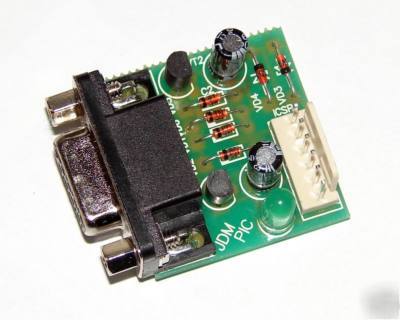

Click for view in large resolution PIC JDM programmer.
Simple PIC JDM programmer for PIC microchip controllers
With this programmer you can program wide range of PIC controllers via ICSP connector ( In Circuit Serial Programming). It is connected to PC via COM-port with any standard COM-port cable. PIC JDM simple in-circuit (ICSP) programmer for Microchip PIC controllers. There no need additional POWER supply for working, becouse it works with COM port and powered from it. For stable working COM port of PC must have standard voltage on own lines ( 8.6V.. 12.5V).
* SMT technology (bottom side)
* PIC JDM programmer based on JDM project, it take all sygnals and power from COM port
* List of supported devices depend from current version of software. At this tyme it support all most useful PIC controllers
* Can be connected to PC as direct (insert to COM port) as with COM port cable
* Fully compatible with PIC-P18, PIC-P28, PIC-P40 boards
10F series: PIC10F200 PIC10F202 PIC10F204 PIC10F206
12F series: PIC12F508 PIC12F509 PIC12F510 PIC12F629 PIC12F635 PIC12F675 PIC12F635 PIC12F683
16F/ series: PIC16F627 PIC16F627A PIC16F628 PIC16F628A PIC16F630 PIC16F636 PIC16F639 PIC16F648A PIC16F676 PIC16F684 PIC16F685 PIC16F687 PIC16F688 PIC16F689 PIC16F690 PIC16F73 PIC16F74 PIC16F76 PIC16F77 PIC16F716 PIC16F737 PIC16F747 PIC16F767 PIC16F777 PIC16F83 PIC16F84 PIC16F84A PIC16F87 PIC16F88 PIC16F818 PIC16F819 PIC16F870 PIC16F871 PIC16F872 PIC16F873 PIC16F873A PIC16F874 PIC16F874A PIC16F876 PIC16F876A PIC16F877 PIC16F877A PIC16C61 PIC16C62 PIC16C62A/B PIC16C63 PIC16C63A PIC16C64 PIC16C64A PIC16C65 PIC16C65A/B PIC16C66 PIC16C67 PIC16C620/A PIC16C621/A PIC16C622/A PIC16CE623 PIC16CE624 PIC16CE625 PIC16C71 PIC16C72 PIC16C72A PIC16C73 PIC16C73A/B PIC16C74 PIC16C74A/B PIC16C76 PIC16C77 PIC16C710 PIC16C711 PIC16C712 PIC16C716 PIC16C745 PIC16C765 PIC16C773 PIC16C774 PIC16C923 PIC16C924 PIC16C925 PIC16C926
18F series: PIC18F1220 PIC18F2220 PIC18F2320 PIC18F2331 PIC18F2410 PIC18F242-2439 PIC18F2420 PIC18F2431 PIC18F2455 PIC18F248 PIC18F2480 PIC18F2510 PIC18F2515 PIC18F252-2539 PIC18F2520 PIC18F2525 PIC18F2550 PIC18F258 PIC18F2580 PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4320 PIC18F4331 PIC18F4410 PIC18F442-4439 PIC18F4420 PIC18F4431 PIC18F4455 PIC18F448 PIC18F4480 PIC18F4510 PIC18F4515 PIC18F452-4539 PIC18F4520 PIC18F4525 PIC18F4550 PIC18F458 PIC18F4580 PIC18F4585 PIC18F4610 PIC18F4620 PIC18F4680
