> Relcomm,1000 watt, rf relay, dc - 2 ghz, noi, great

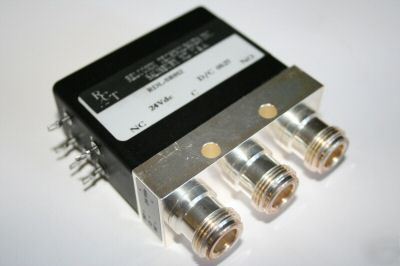

Relcomm,1000 watt, rf relay, dc - 2 ghz, noi, great
Insertion Loss (dB max): 0.10 0.15
RF Power CW (watts) 1 KW @ 1 GHz
Operating Temperature Range -25 C - +65 C
Storage Temperature Range -40 C - +85 C
Failsafe Switching Action Break before make
Over temp. operating voltage 20-28 Vdc
Pickup voltage (max @ 25 C) 18 Vdc
Actuating Current (mA max) 120 @ 24 Vdc & 25 C
Indicator Contact Rating 5W TYP, 175 Vdc MAX, .25.A MAX
The relays are new unused relays. We paid significantly more for the relays than what they are bein sold for in this listing. We used them on a switching product that was designed for the cellular industry, however, the relays can be used on ham projects, commercial projects, and industrial projects...review the specs and apply to your application with reliable results.
THIS particular listing is for some relays that are NEW but slightly Tarnished. The silver is starting to tarnish. Functionality and performance will not be sacrificed but they are tarnished.
