Piab 0-30" hg vacuum switch #evs 100

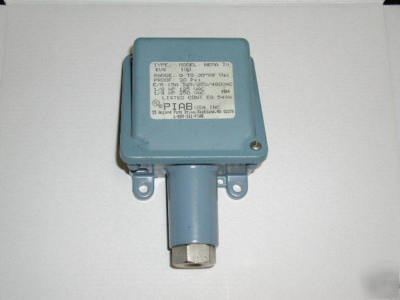

PIAB 0-30" Hg Vacuum Switch #EVS 100
* SPDT Switch, wired normally open or normally closed.
* Electrical Rating: 15 amps 125/250/480 VAC resistive.
* Internal setpoint reference scale.
* Phosphor bronze bellows sensor.
* Enclosure: NEMA 4X; IP65, die cast aluminum with epoxy powder coated.
* Pressure Connection: 1/4" NPTF, nickel plated brass.
* Mounting: surface mount with two screws or mount by pressure connection.
