New galil amp-20341 4-axis 20-watt servo drive w/parts

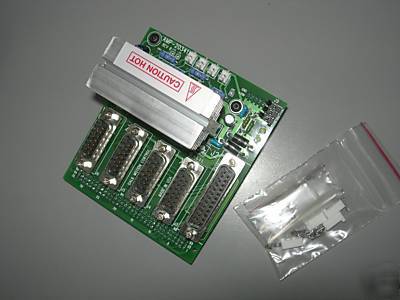

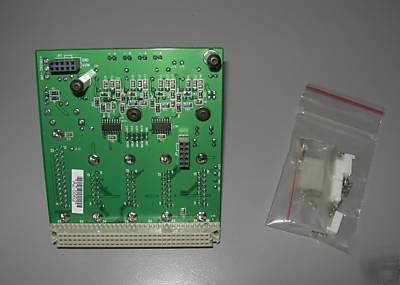

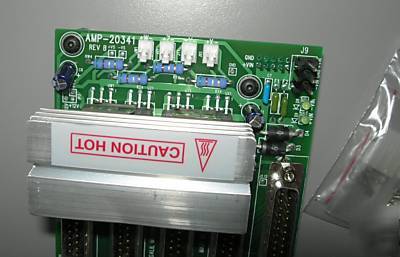

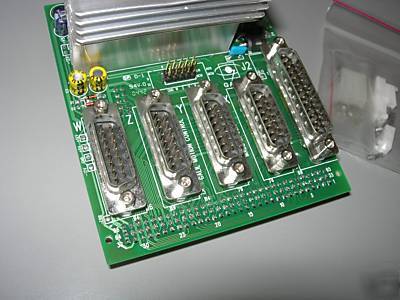

AMP-20341 4-Axis 20-Watt Servo Drive
Measures Approx. 4 long x 3 wide x 2 high
The Galil AMP-20341 4-axis stepper and servo drive mounts directly to the 96-pin connector of the DMC-21x3 Ethernet motion controller eliminating the cabling normally associated with interfacing a multi-axis controller to separate single-axis drives. The AMP-20341 plug-in, multi-axis board is used for driving four brush-type servo motors up to 20 Watts.
AMP-20341 contains four 20W linear drives for driving brush-type servo motors
- Requires +/-12- 30 V DC input
- Gain is .1 A/V at 1A maximum current
