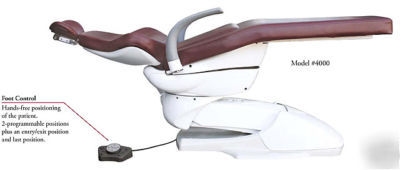

New dental equipment mirage chair/5 year warranty" "
Thin back with lumbar support
Anatomically correct back pivot point
Adjustable double articulating headrest with contoured cushion
Four manual chair movements and 3-programmable
Arms rotate for easy left or right patient entry
Syncronized back and toe board recline
Upholstery is designed for easy and quick clean-up
Heavy vinyl scuff guard for toe board
Sturdy all-metal construction
All pivot points have permanently lubricated bearings
Quiet and dependable operation
Chair functions are digitally controlled by a microprocessor
Instant override on automatic functions
Chair is designed for maximum serviceability
Precision photo-electric positioning
Articulating dual axis headrest re-positions the patient oral
cavity to view the upper and lower arches, without the need
of changing backrest position.
Offer optimum patient comfort while
allowing ease of access from all
directions. Armrests are movable, and
can be removed completely if necessary.
manual disc-type positioning control.
Lifting/lowering mechanism: Hydraulic, cantilever type
Initial height/stroke: 15-1/2 (395mm) / 15 (380mm)
Backrest Reclining: Axis mechanism
Backrest Reclining angle: 0 (horizon) 70
Seat tilting: Synchronized with backrest
Preset Positions: Microcomputer controlled P1, P2,
LP (last position) & AR (auto-return)
Chair rotation angle: 30 each (left and right)
Safety switch: Under main link
Emergency stop: Any switch can cancel the automatic movement
Chair 55 x 33 x 33 / 350 lbs.
Cushion 50 x 8 x 22 / 20 lbs.
