Mastech pc RS232 interfaced humidity temperature meter

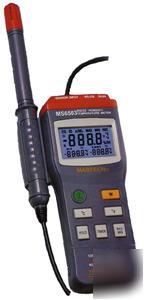

Mastech Humidity & Temperature Meter with RS232 Interface, MS6503
The Mastech MS6503 Humidity & Temperature Meter is well known for its high resolution and accuracy, it has two separate sensors for measuring temperature and humidity, the humidity sensor is a Honeywell HIH-3610, the temperature sensor is made by National Semiconductor Corporation. It also has a RS232 interface, via which you can connect to your computer or laptop to monitor the real-time variation of these parameters, you can also save and plot the data and save it on your hard disk. This meter comes with a 1-year manufacturer's warranty.
Numerical display: 4 digital liquid crystal display,
Measurement range: Humidity: 0% ~ 100% RH,
Measurement range: Temperature: -20 C ~ +60 C, -4 F ~ +140 F,
Resolution: Humidity: 0.1%RH, Temperature: 0.1 C, 0.1 F,
Accuracy: Humidity: 2.5%RH at 25 C, Temperature: 0.7 C, 1.4 F,
Response time: Humidity: 75 sec. in slowly moving air,
Response time: Temperature: 40sec. in slowly moving air,
Power requirements: Battery: One 9V battery 006P or IEC 6F22 OR NEDA 1604,
AC Adapter: 9VDC/30mA minimum plug diameter: 3.5mmx1.35mm,
Dimensions: Meter: 183(L)x74(W)x33(H)mm,
Weight: approx. 330g (including battery),
* Simultaneous display both RH and temp,
* Adjustable interval data logging,
* Max/Min value measurement,
* Accord with IEC1010 Standard.
Mastech MS6503 Humidity & Temperature Meter,
