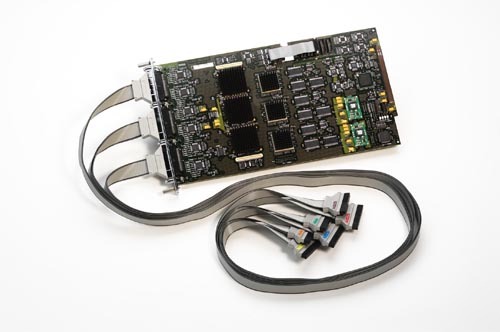

Hp/agilent 16910A logic analyzer module, 250MHZ state
Timing Analysis (Asynchronous Sampling)
* 4 GHz (250 ps) timing zoom with 64 K memory
* 1.0 GHz / 500 MHz (half / full-channel) conventional timing analysis with deep memory
* 500 MHz transitional timing
State Analysis (Synchronous Sampling)
* State clock rates up to 450 MHz
* Data rates: up to 500 Mb/s
* Automated threshold/sample position setup for accurate measurements on high-speed buses
* Simultaneous eye diagrams on all channels identify problem signals quickly
