> Auto focus vari-focal sony ccd camera,22X optical zoom
Auto focus vari-focal sony ccd camera,22X optical zoom

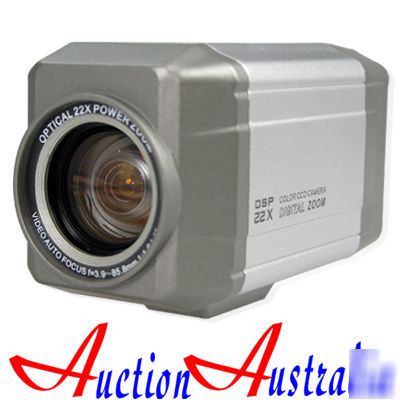

Intergrated automatic/manual/vari-focal Sony ccd camera DV-YT39, 22x, f=3.9-85.8mm
* 1 x Intergrated automatic focus ccd camera DV-YT39
* Built with advanced digital signal processing technology and DSP Auto-Focus technology.
* 22x optical zoom, f=3.9mm-85.8mm, 1-22X one time fast, reliable auto-focus function. It also has manual focus option and manual zoom option. It has multiple communication ports.
* The zooming and focusing can be controlled by RS485 port or PTZ controller. You can modify the related parameter of the camera in OSD menu or by RS485 communication port.
* Supports close distance shots
* Operating temperature: -20 degree to 60 degree
* Image Sensor: 1/4" Sony CCD
* Minimum Illumination: 0.5Lux/F1.2
* Video Output Level: 1.0V/ 75ohm(BNC)
* Communication format: Rs485
* ZFC Control Por: PTZ DC+-6V+-12V
* Lens (focal length): 22X optical zoom (3.9-85.5mm)
* View angle: 49.6-2.5 degree
* Shutter speed: 1/50 to 1/1000000 second (8 level)
* White Balance: Auto/Manual
* Back light compensation ON/OFF
* Dimensions: 60 x 60 x103mm approx.
