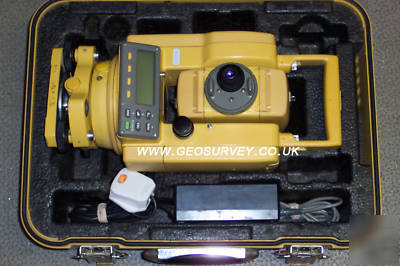

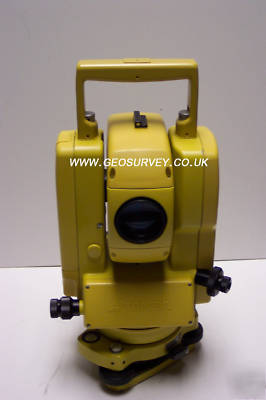

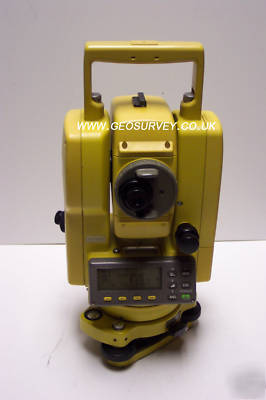

Topcon GTS212 total station theodolite geo surveying
Ready to use. Instant peace of mind
Test and fully calibrated for this Sale
Comes with official certificate of calibration
For sale is an excellent condition Topcon GTS-212 with internal memory makes it an intelligent total station. Measured data can be stored on an onboard memory or transferred to a data collector. By connecting GTS 212 to computer via the interface port, data can be up or down loaded.
It has all on board programs that you need to use on site.
Data collection for storing surveying measurements
Layout for setting out by using coordinates
Remote Elevation measurement (REM)
Missing Line Measurement (MLM)
Setting Z Coordinate of Occupied Point
1) Setting occupied coordinate
2) Z Coordinate Calculation from Known Point Measuring
1) Area Calculation from Coordinate Data File
2) Area Calculation from Measured Data
Stake out and offset measurements
Setting Coordinate Values of Occupied Point
Setting Height of the Instrument
Setting Height of Target (Prism Height)
Execution of Coordinate Measuring
Range to one prism 900m/3000ft
Electronic compensator selectable on/off
Selectable between degrees or gon / distance meter or feet
Data out- put port RS232C interface
1x interface cable (data cable)
Calibration certificate valid for 12 months
UK 20 Europe 65 Canada and USA 95
