Yokogawa CW121 clamp-on power quality meter

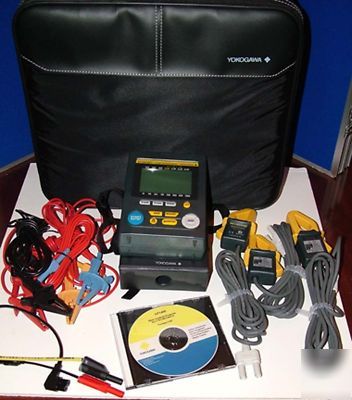

This is a CW121 which includes: RS232 inteface, com. cable, carrying case, flash card, three 200 AMP clamps and Data Analysis Program.
List would be over $3000 if you were to purchase new.
* Compact & Light weight body with large back-lit LCD
* Current clamps in a range of sizes(small to large diameter)
* Support for large-capacity ATA flash memory (equipped with PC card slot)
* Data can be saved at from 1 second
* Wiring error check function
* Simultaneous measurement of multiple use possible by external control terminal
* Parameters setting tool is included to set measurement conditions through PC
Specifications General Specifications Product Overview
Model CW121: Three-phase 4-wire
RS-232 communication interface
Probe for 200A (3pcs/set) (96033)
Carrying case, Magnetic backing instrument case, 2G Flask card, Communication cable.
Input System: Single-phase 2-wire to 3-phase. 3-wire (CW120) or 4-wire (CW121)
Features: Large capacity of memory (ATA flash memory card), Wiring error check function, 2 or 3-load system, Support variety of network communication protocols
V/A / Active power / Reactive power / Power factor (lead/leg) / Frequency / Active electric energy / Regenrative electric energy (Only for data saving)
* The CW120 Series is compact in size (117 x 161 x 51 mm (W x H x D)), making it ideal for installation in cubicles and inside distribution panels. Installation is even easier with the magnetic case (93023).
* Although the CW120 Series is small, it has a large backlit LCD.
* A new addition to the clamp lineup is a small-diameter current clamp (model 96033, capable of measurements in the range of 5 50 A) for measurements in tight spots and locations where many wires are jumbled together.
150/300/450V Range(CAT III 600V) Max:450V+10%
5/10/20/50/100/200/500/1000A Range
CW120: Single-phase 2-wire, Single-phase 3-wire, 3-phase 3-wire, Single-phase 2-wire 2-load system CW121: Single-phase 2-wire, Single-phase 3-wire, 3-phase 3-wire, 3-phase 4-wire, Single-phase 2-wire 2 or 3-load system
1.2%(0.8% rdg + 0.4% rng) (Depend on Clamp probe to use)
* The CW120 Series can be used for voltage measurements up to 495 V.
* A variety of connection types are supported, from single-phase 2-wire to three-phase 4-wire (CW120: three-phase 3-wire model; CW121: three-phase 4-wire model).
* Continuous measurement integration (accurate measurements can be obtained even if there are large load fluctuations)
* Plus/minus signs are shown for reactive power and power factor.
* The data saving interval can be set in the range of one second to one hour.
The setting software allows you to set CW120 Series measurement conditions through a PC and save measurement data on a PC when the unit is connected to the PC through RS-232 or RS-485 port.
