Tektronix P6207 4 ghz active oscilloscope probe TDS820

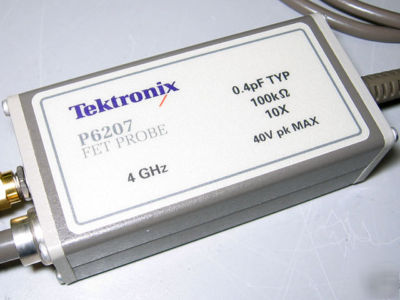

Tektronix P6207 4 GHz Active Oscilloscope Probe
The P6207 Active (FET) Probe is a Low Circuit Loading Signal Acquisition probe for the TDS820 Oscilloscope. The P6207 provides the widest bandwidth and lowest input capacitance at 100 kilohm available for a handheld active voltage probe. It provides a wide linear dynamic input range for accessing most digital device families using today's logic voltage levels. The lower input capacitance reduces the AC current flow and the sensitivity to ground loops, thereby easing ground lead length requirements.
This probe has the following features:
* Input Capacitance: 0.5 pF (Provides Lower Circuit Loading and the Use of Longer Ground Leads)
* Input Resistance: 100 kilohm
* Maintains Circuit Biasing Levels
* Active Performance with Passive Simplicity
* Integral Probe Power TEKPROBE SMA
* Small Geometry Accessibility
