Reliance 20216A 5000 watt power transfer switch + inlet
Reliance 20216A 5000 Watt Power Transfer Switch + Inlet

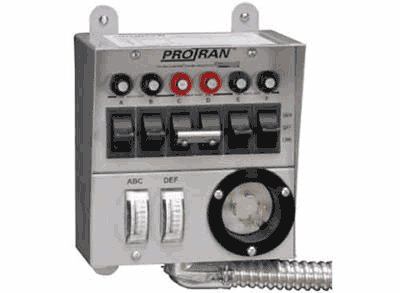

Reliance 20216A Pro/Tran Indoor Transfer Switch
5000 Running Watts + Watt Meter
These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 18-inch flexible conduit whip attaches easily to the load center and all wires are clearly marked. Simply select the circuits needed in an emergency and connect them to the Pro/Tran wire leads. Pro/Tran transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, reset-able branch rated circuit breakers and non-defeatable (break-before-make) double-throw switches. Some models feature exclusive Reliance watt meters with accuracy of 3% throughout the entire range. All models with a power inlet on the front *with exception to model 30216BRK* also include a cover for the power inlet opening that facilitates hardwiring. All models without a power inlet on the front include a covered opening that permits the installation of a power inlet for cord connection directly to the transfer switch.
* Model Description: Pro/Tran
* Max. Generator Running Watts: 5000
* Max. Single-Pole Circuits: 6
* Max. Double-Pole Circuits: 1
* Max. Combined Load @ 125 VAC: 40
* Max. Combined Load @ 250 VAC: 20
* 15 Amp Single-Pole Circuit Breakers: 4
* 20 Amp Single-Pole Circuit Breakers: 2
* Recommended Cord Size (gauge): 12
* Conduit Size (inches): 3/4
* Dimensions H x W x D (inches): 7.5x7x4.5
* Cabinet Type, NEMA: Indoor
* Reliance 20216A Pro/Tran Indoor Transfer Switch
