New 20 db bnc attenuator, mcl p/n hat-20+, ( )

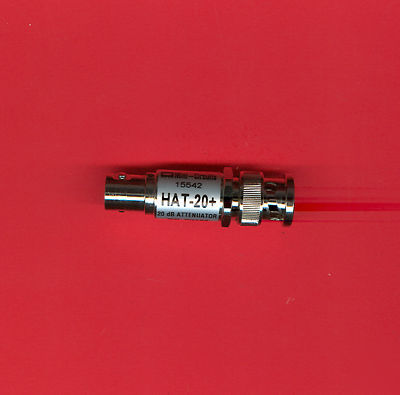

This item is 1 each Mini-Circuits 20 dB BNC attenuator with the following specifications, MCL P/N: HAT-20+, Frequency Range: DC to 2000 MHz, Input Power: 0.5 watt maximum, Attenuation Tolerance +/- .2 dB, Impedance: 50 ohms, VSWR: 1.15:1 maximum, Operating Temperature: -55 to100 degrees C. . An attenuator application note is available for online viewing by clicking on this URL, http:// /atanr1.htm . This is a new factory fresh unit and covered by a 30 day warranty.
+ RoHS compliant in accordance with EU Directive (2002/95/EC)
