Jds uniphase sb 1X12 fiber optic switch mm fc multimode

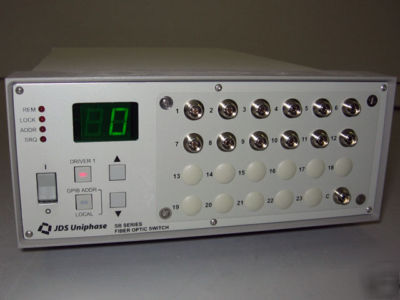

JDS Uniphase SB 1x12 Fiber Optic Switch
* Model Number: SB1C10121+22XB000FP
* Switch Type: C configuration, The 1xN configuration allows a single commoninput to be switched to any of the outputs
* Wavelength Range: 750 to 940 nm
* Connector Type: FC\PC (connectors on front)
* Insertion Loss: 0.4 dB (Typical), 0.7 dB (Maximum)
* Return loss MM standard/analog: 25/35 dB, 20/30 dB
* Insertion loss stability: +/- 0.03 dB, +/- 0.05 dB
* Sequential switching: +/- 0.003 dB, +/- 0.005 dB
* Random switching: +/- 0.01 dB, +/- 0.025 dB
This unit has been tested by an onstaff engineer and it is in excellent condition. It comes with a 14 Day Guarantee against DOA from receipt.
