> 1000W process technology fluoropolymer immersion heater
1000W process technology fluoropolymer immersion heater

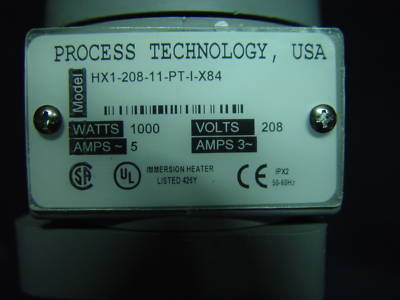

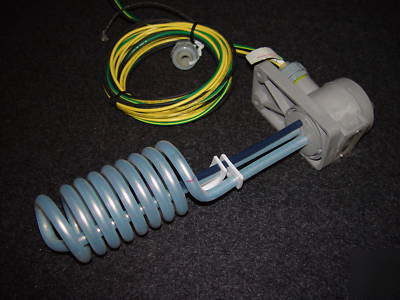

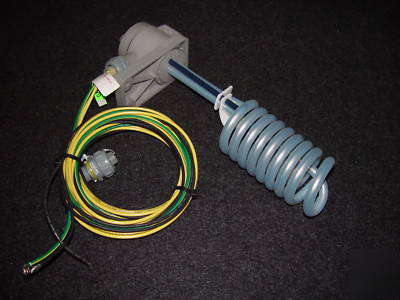

PROCESS TECHNOLOGY IMMERSION HEATER
THE SPECS ARE BELOW AND I'LL LET THE PICTURES DO THE REST OF THE TALKING.
THE FOLLOWING WAS FOUND ON THE NET:
HX Series, Spiral Fluoropolymer (PTFE) Heaters
Single phase only. Longer vertical lengths and flexible risers available, consult factory.
Product Features and Benefits:
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212 F (100 C).
RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purge systems. Guaranteed 100% pinhole free.
OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch, 1.5w/cm2) for long service life.
CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.
Grounded internal metal element.
Thermal protector built in. Replaceable P1 fuse standard for solutions up to 190 F (88 C).
CERTIFICATIONS: UL (1-6 kW), CSA, and CE.
SIZES: 500 watts to 9,000 watts.
VOLTAGES: 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Single phase only.
OPTIONS AVAILABLE (consult factory):
Replaceable thermal protectors:
P4: for solutions from 190 F (88 C) to 220 F (104 C).
Resettable thermal protectors:
P2: bi-metal switch for solutions up to 190 F (88 C).
P8: type-J thermocouple for solutions from 190 F (88 C) to 210 F (99 C).
P3: type-J thermocouple for solutions from 210 F (99 C) to 250 F (121 C).
Longer vertical lengths (cold zones).
Polypropylene guards: recommended for applications up to 180 F (82 C) (sold separately).
Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180 F (82 C) (sold separately).
Longer wire and conduit lengths.
Flexible continuous fluoropolymer leads (P3 protector only).
Lower watt densities for highly viscous solutions and technical acids.
Temperature and level controls sized to match the heater.
I RECENTLY PURCHASED A RATHER LARGE LOT OF MANUFACTURING AND LAB EQUIPMENT, TOOLS AND RELATED SUPPLIES. I BELIEVE THE NATURE OF THEIR BUSINESS WAS IN SOME SORT OF PLATING AND WAFER MANUFACTURING.
THERE IS A TON OF HIGH DOLLAR ITEMS SUCH AS:
HEATERS, AIR AND FLUID PUMPS, LAB EQUIPMENT, TOOLS AND SUPPLIES,
SERVOS AND CONTROLS, LINEAR BEARING SLIDES FOR MOTION CONTROL,
FILTRATION SYSTEMS AND FILTERS,
TEMPERATURE MEASUREMENT AND CONTROLS
THESE ARE TOP OF THE LINE PRODUCTS FROM SUPPLIERS SUCH AS:
MITSUBISHI, OMEGA, OMRON, NUMATICS, ALL-FLO, MARATHON, LITTLE GIANT,
IWAKI, DWYER, CRA-LAB, COLE PARMER, VICTOR, DAYTON, IDEC, FLUKE,
MPI INTER-CONSULTING, NB LINEAR SYSTEMS, FILTER PUMP INDUSTRIES,
PROCESS TECHNOLOGY, VORTEC, ULTRASONICS WORLD, GAST, FLOJET,
DYNATRONICS, SPEEDAIR, HEATFLEX, SMC AND MANY MORE.
THIS WAS A RUNNING BUSINESS AND ALL PRODUCTS ARE IN VERY NICE CONDITION AS WELL AS SOME NEW STOCK.
