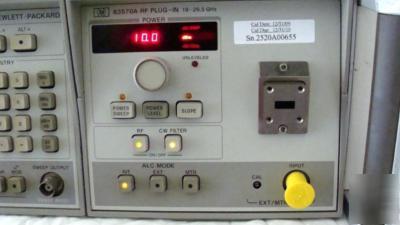

Hp - agilent 83570A 18 to 26.5 ghz rf plug in
This unit works in the HP 8350A/B Mainframe.
The 83570A is all solid-state, maintains a minimum leveled output power of 10 dBm, internally leveled to a flatness < 1.4 dB. At the output, power losses are minimized with a waveguide output connector (K281C coaxial adapter sold separately). The full range from 18GHz to 26.5GHz maintains a 30MHz frequency accuracy and 0.1% linearity. Output power has a calibrated range of 11 dB which can be extended with external attenuators (sold separately). Power level may be manually set to a 0.1 dB resolution, remotely programmed to a 0.02 dB resolution. With high frequency coverage, complete HP-IB programmability and outstanding leveled output power, the 83570A plug-in, combined with the many of the 8350 mainframe adds a new dimension to microwave measurements above 18GHz.
Reasonable offers are welcome! REASONABLE ONES!
