New bw TX600 low-power fm broadcast transmitter -in-box

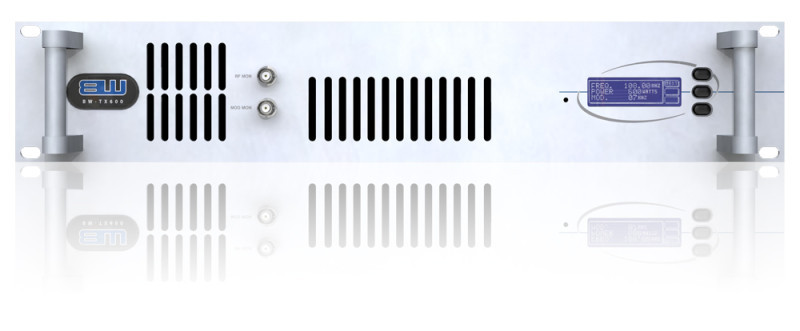

BW TX600 Low-Power FM Broadcast Transmitter New-In-Box
We are pleased to offer a BW TX600 FM broadcast transmitter. This item is new and unused in the box with all factory paperwork.
The TX600 (15 to 600 watt) is everything you would expect from BW Broadcast. Designed for pristine audio quality and unsurpassed reliability, TX600 units are among the thousands of BW Broadcast's FM transmitters operating trouble-free in some of the world's most remote installations.
An integrated single box solution incorporating the exciter, RF amplifier, power supply, stereo encoder and audio limiter, the TX600's comprehensive features and creative design make it exceptional value for those on a budget but don't want to compromise on performance.
The TX600 was the first BW Broadcast transmitter to include the novel gold-clamp transistor technology, so that the most vulnerable components can be replaced in the field in minutes with no special tools.
All BW Broadcast FM transmitters are loaded with features, such as a configurable compressor/limiter and front-panel LCD control interface. Underlying architecture includes a unique dual-loop Virtual VFO exciter, ultra-low distortion modulator and high performance stereo encoder integrated into a great performing, highly stable FM transmission system. Developed for global use, the TX600 is frequency agile and complies with all applicable CE, FCC and EU regulations.
The power amplifiers in the TX600 are based on a modern MOSFET device. High power fans draw fresh air through the transmitter's heatsink to keep the transistor and amplifier cool. Amplifiers are protected from damage by temperature control systems and antenna fault (VSWR) monitoring which react to faults by reducing the output power to a safe operating level, keeping you on air rather than shutting down completely.
The TX600 is more configurable and flexible than other units in its class. The limiter and stereo encoder can be switched in and out of circuit. The rear panel contains XLR balanced inputs with input level controls, BNC for multiplex output from the internal digital stereo generator, BNC for multiplex input to the exciter for loop through operation and external processor input. RF output is via an N-Type socket.
85-260 VAC (reduced power output when using 110 VAC mains supply)
15W - 600W adjustable (reduced power output when using 110 VAC mains supply
