New fluke clamp meter #33 ,tools,600V,700A,electrical

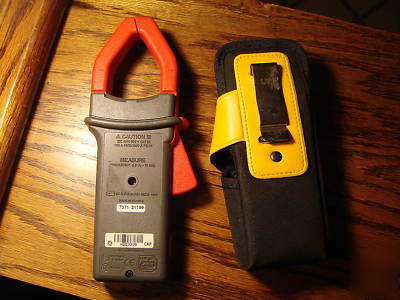

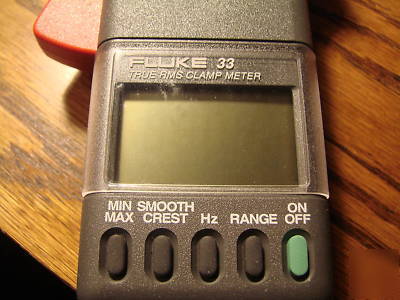

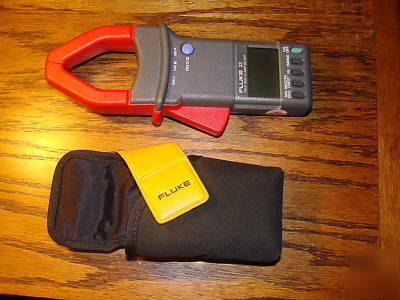

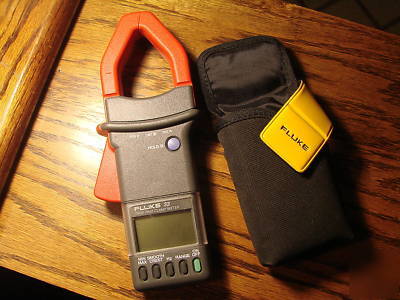

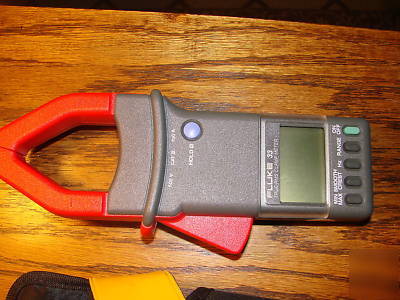

This is a brand new Fluke 33 clamp meter. It comes in a canvas belt holder. Fluke is made in France and is considered the best meters in the world.
Fluke 33 Clamp MeterThe Clamp Meter of Choice for Adjustable Speed Drive Measurements, with True-rms Crest and Frequency Measurement
The Fluke 33 give accurate True-rms current measurements from 0.3 to 700A max. In addition, the Model 33 captures peak values, up to 1000A, for Crest Factor calculation. Both models measure frequency, so you can use them to determine the output frequency of adjustable speed drives, to set the governor of an engine generator or to detect third harmonic currents (180 Hz) in the neutral of a 3-phase system. The Fluke 33 are built extra strong to withstand job site abuse.
Why True-rms? Electrical professionals today need current clamps that are up to the challenge of accurately measuring harmonic currents caused by non-linear loads. Virtually all electronic equipment falls into this category - PCs, printers, HID lighting, adjustable speed drives, etc. Average-sensing meters can't do the job. They can produce readings that are 30%-50% low. Why? Harmonics cause distorted waveforms, and average-sensing meters can only accurately measure pure sine waves. One measure of waveform distortion is Crest Factor, the ratio of the peak to the rms value of the wave. CF for a pure sine wave is 1.4. Higher CF indicates harmonic currents. Fluke's true-rms Current Masters (Models 32, 31, 33, 36) give correct readings for any wave shape, within the instrument's CF specifications.
