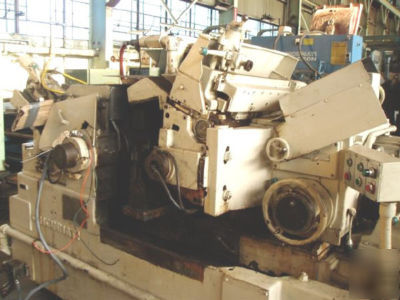

#340-20 cincinnati "twingrip" centerless grinder #24266
#340-20 CINCINNATI "TWINGRIP" CENTERLESS GRINDER
New 1962, Serial No 62-419D275-0001, Model 340-20,
Push-Button Thrufeed Compensator Unit
Hydraulic Grinding Wheel Truing Attachment
Hydraulic Regulating Wheel Truing Attachment
Regulating Wheel Outboard Support
Diameter Capacity, Nominal............... 1/2" to 3"
Diameter Capacity, Maximum............... 6"
Grinding Wheel Diameter, Maximum......... 24"
Grinding Wheel Width, Maximum............ 20"
Regulating Wheel Diameter, Maximum....... 14"
Regulating Wheel Width, Maximum.......... 20"
Regulating Wheel Hole Diameter........... 6"
Regulating Wheel Speeds, Low Range....... 12 to 56 RPM
Grinding Wheel Motor, Horsepower......... 40 HP
Regulating Wheel Motor, Horsepower....... 2 HP
Electrical System........................ 230-460/3/60
Floor Space Required, W x D.............. 13'9" x 9'0"
Weight, Approximately.................... 22000 LBS
