Precision frequency counter meter recorder VC3165

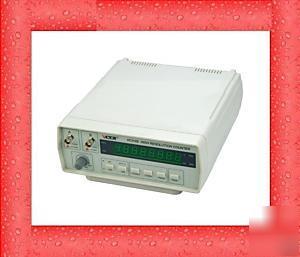

Precision Frequency Counter Meter VC3165
This frequency counter (VC3165) measures signals over a wide range from 0.01 Hz to 2.4 GHz. The gate time is continuously varying from 100ms to 10s.
All functions in VC3165 depend on a single CPU. A crystal-controlled temperature circuit provides a constant compensation for temperature change, thus reducing measurement errors typically caused by temperature drift. The Channel B (CH. B) input has an attenuator (x1, x20), AC/DC coupling for a low-pass filter.
* Frequency, period and equal-precision measuring.
* 3 step function selections : Work state, Unit and 8-Digit LED display.
* 3 step function selections
* Channel B (CH. B) input has an attenuator (x1, x20)
* AC/DC coupling for low-pass filter
* All functions depend on a single CPU
* Crystal-controlled temperature circuit
* 2 Input Channels : Channel A for 0.01 Hz to 50 MHz ; Channel B for 50 MHz to 2.4 GHz
Channel A (0.01Hz to 50 MHz)
* Frequency range : DC couple 0.01 Hz to 100 Hz ; AC couple 100 Hz to 50 MHz
* "DC" 0.01 Hz - 1 Hz 500m Vp-p , 1 Hz - 100Hz 80m Vrms
* "AC" 100 Hz - 50 M Hz 80m Vrms
* Input impedance : 1 M
Channel B (50 MHz to 2.4 GHz)
* Frequency : 50 MHz - 2.4 GHz
* Sensitivity : 50 MHz - 1.2 GHz 80m Vrms
1.2 GHz - 2.4 GHz > 80m Vrms
* Input Impedance : 50
* Resolution depends on gate time control setting
* Short time stability : 3 x 10-9 per second
* Long time stability : 2 x 10-8 per month
* Temperature drift coefficient : 1 x 10-7, 10 C - 40 C
* Line voltage variation : 1 x 10-7 for line voltage 10%
* Gate Time : Continously variable from 100ms to 10s
* Precision : standard time error (t) x frequency (f) 1d
* Power supply : AC 110V or 220V 10%, (50Hz / 60Hz) 5%
* Switchable between AC 110V or 220V (suitable for any countries) (Please select correct Voltage before connecting the power line)
* Power cord with AU plugs 3 pin flat ( can be used with AU to UK AC Power Adaptor )
* Preheat time : 20 minutes
* Operating environment : 0 C - 50 C, 10 - 90% R.H.
* Dimension : approx. 270 x 215 x 100 mm
* 1pc x Frequency counter (main unit)
* 1pc x AU Power cord with 3pin flat (UK 3pins power adaptor)
* 1pc x Test probe with BNC type connector
* Packed into a standard factory box
