Isolation transformer 1 kva triad n-59M

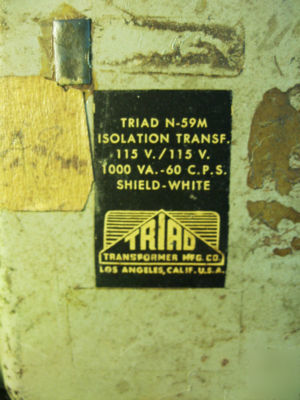

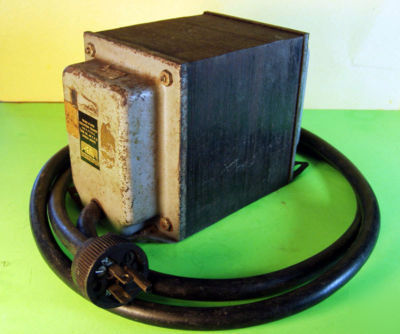

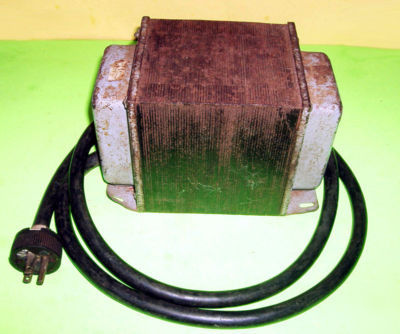

Isolation Transformer 1 KVA Triad N-59M
This transformer has given me many years of trouble free service and can be a life-saver (or probe saver) when you have to float the scope or the unit under test.
Electrical Specifications (@25 C) - from Triad for New N-59MG List $320.28
2. Input Voltage: 115 V, 50 / 60 Hz
4. Full Secondary Load: 8.70 Amps RMS
5. Voltage Regulation: 5 % TYP @ full load to no load
This is Triad Spec for a N-92MD (500VA - List $256.19 & 18 weeks delivery)
(Designed to meet UL s Medical Applications Low Leakage requirements):

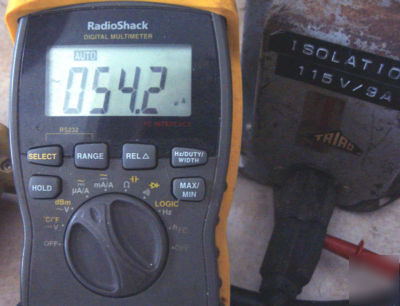

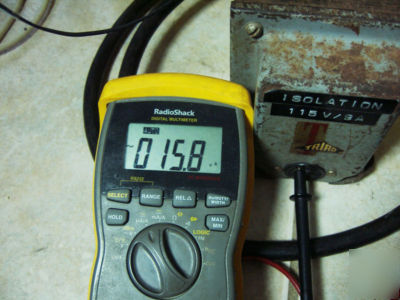

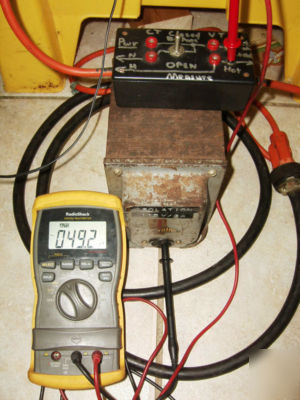

Leakage current from primary to secondary is rated at less than 50 micro-amps and is typically measured at less than 10 micro-amps.
MD = Medical/Dental, Grounded Outlet
Note the largest MD listed is a 500 VA unit (N-92MD)
SO, the Best Guarantee you can get from Triad after waiting up to 18 weeks for delivery is about 4 A better than than this Old unit and 500 VA Less!
Satisfaction Guarantee (see below).
Satisfaction Guarantee 3 day Acceptance Period:
