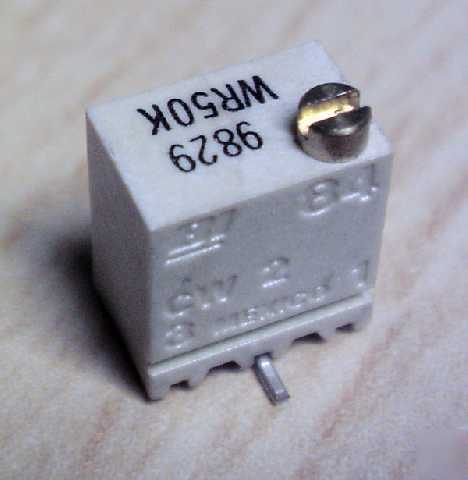

Bi 12 turn mini potentiometer linear taper 50K ohm X50
BI MULTITURN MINI POTENTIOMETER LINEAR TAPER 50K OHM NEW LOT OF 50 PCS
BI MULTITURN MINI POTENTIOMETER LINEAR TAPER 50K OHM
Description: Res Trimmer 50K Ohm 10% 1/4W 12Turn 1.78mm Gull Wing SMD Tube
Standard Resistance Range, Ohms: 10 to 1Meg
Standard Resistance Tolerance: 10%
Input Voltage, Maximum: 200 Vdc or rms not to exceed power rating
Slider Current, Maximum: 100mA or within rated power, whichever is less
Power Rating, Watts: 0.25 at 85 C derating to 0 at 150 C
End Resistance, Maximum: 2 Ohms
Actual Electrical Travel, Turns, Nominal: 12
Insulation Resistance, Minimum: 1,000 Megohms
Resolution: Essentially infinite
Contact Resistance Variation, Maximum: 1% or 1 Ohms, whichever is greater
Seal: 85 C Fluorinert (No Leaks)
Temperature Coefficient, Maximum: 100ppm/ C (<100 Ohms = 250ppm/ C)
Operating Temperature Range: 65 C to +150 C
Thermal Shock: 5 cycles, 65 C to +150 C (1% ?RT, 1% ?VR)
Moisture Resistance: Ten 24 hour cycles (1% ?RT, IR 100 Megohms Min.)
Shock, 6ms Sawtooth: 100G s (1% ?RT, 1% ?VR)
Vibration: 20G s, 10 to 2,000 Hz (1% ?RT, 1% ?VR)
High Temperature Exposure: 250 hours at 150 C (2% ?RT, 2% ?VR)
Rotational Life: 200 cycles (3% ?RT)
Load Life at 0.5 Watts: 1,000 hours at 85 C (2% ?RT)
Resistance to Solder Heat: 260 C for 10 sec. (1% ?RT)
Temperature Exposure, Maximum: 215 C for 3 min. (1% ?RT)
Mechanical Stops: Clutch action, both ends
Torque, Starting Maximum: 3 oz.-in. (0.021 N-m)
Weight, Nominal: .014 oz. (.40 grams)
